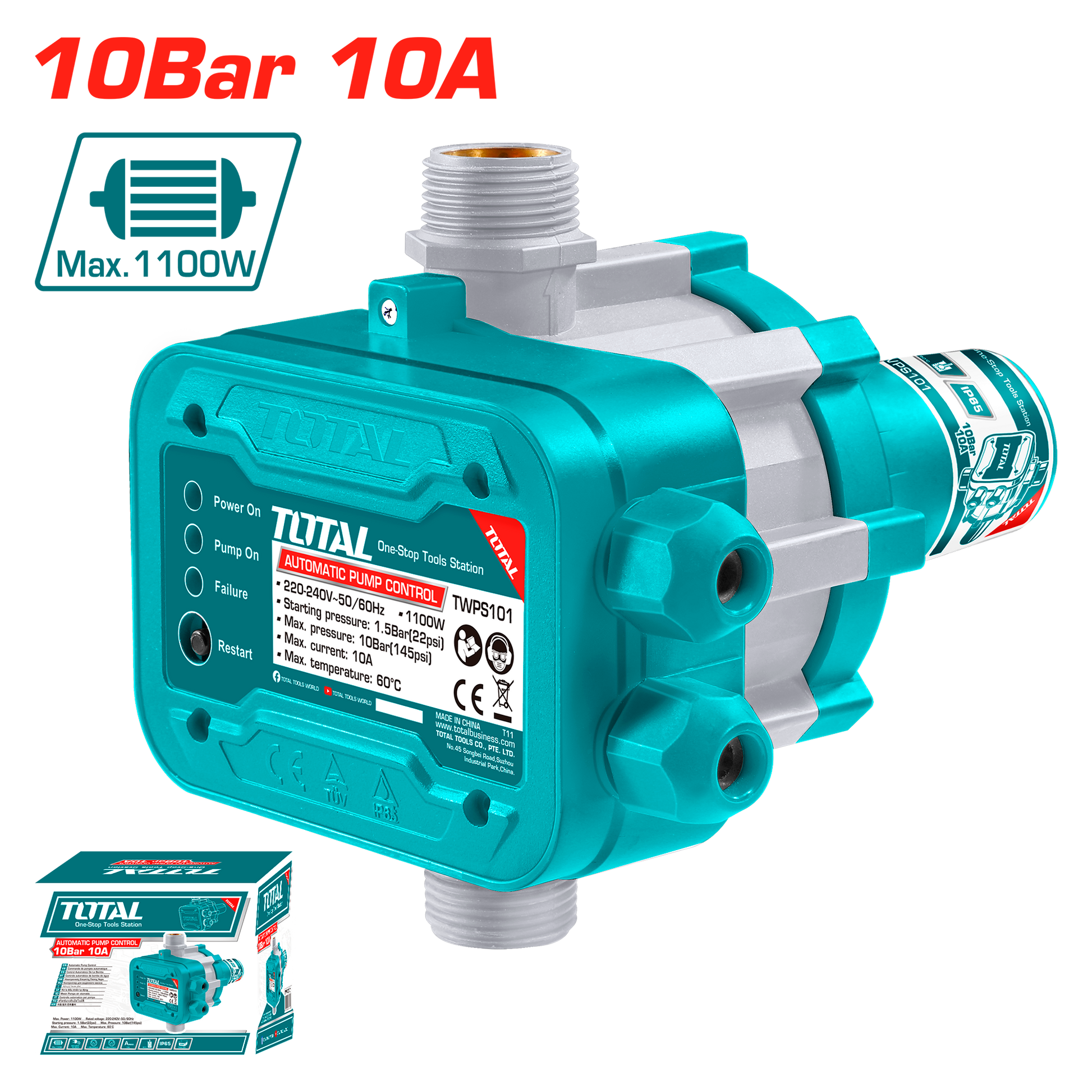

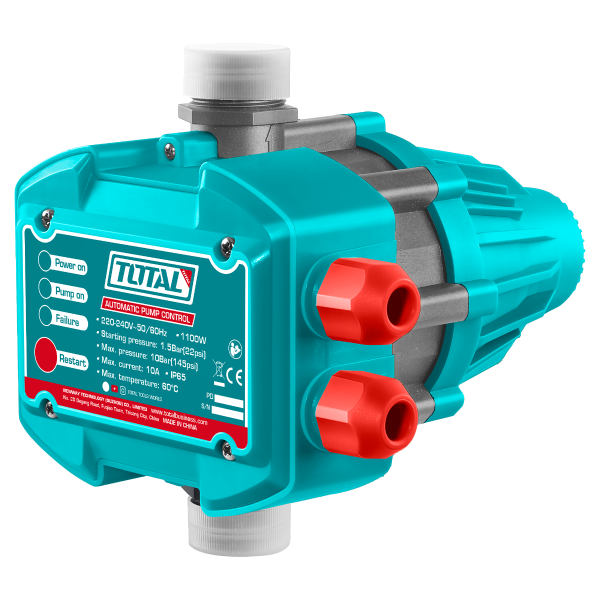

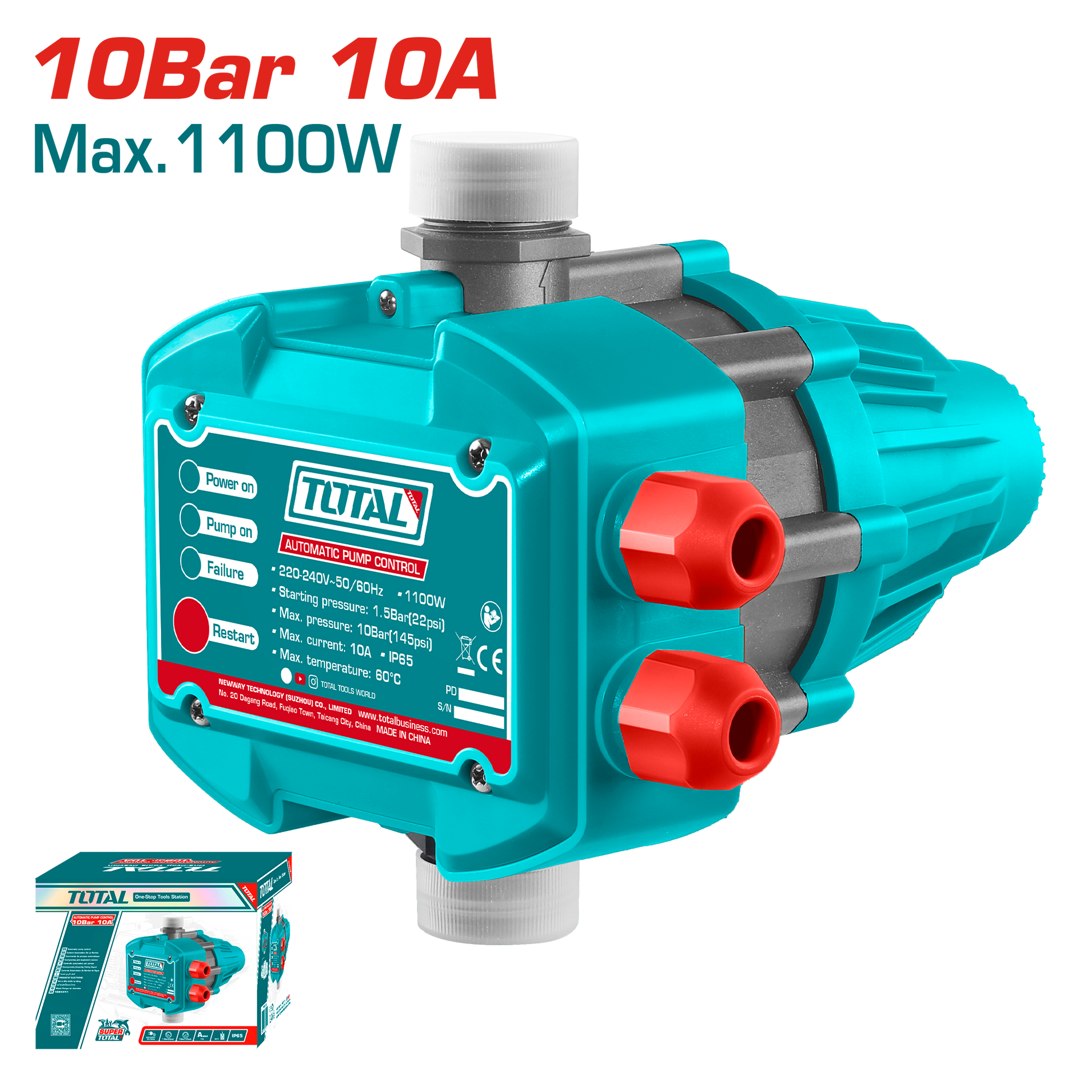

Automatic Water Pump Control Switch 10Bar 10A - 1100W

Description

TOTAL Automatic pump control TWPS101

TOTAL TWPS101 is the intelligent brain for your water system. Designed to automate the operation of electric water pumps, this controller senses pressure drops and water flow to start and stop the pump automatically when a tap is opened or closed. It eliminates the need for manual switching and protects your pump from damage.

Smart Automation & Performance

• Instant Response: Pre-set with a 1.5 bar starting pressure, ensuring consistent water flow as soon as demand is detected
• High Power Compatibility: Supports pumps up to 1100W (1.1kW) with a maximum current of 10A
• Heavy-Duty Pressure: Capable of managing system pressures up to 10 bar, suitable for multi-story buildings and high-pressure irrigation

Built for Durability & Safety

• IP65 Weatherproofing: Fully protected against dust and low-pressure water jets, making it safe for installation in damp pump sheds or sheltered outdoor areas

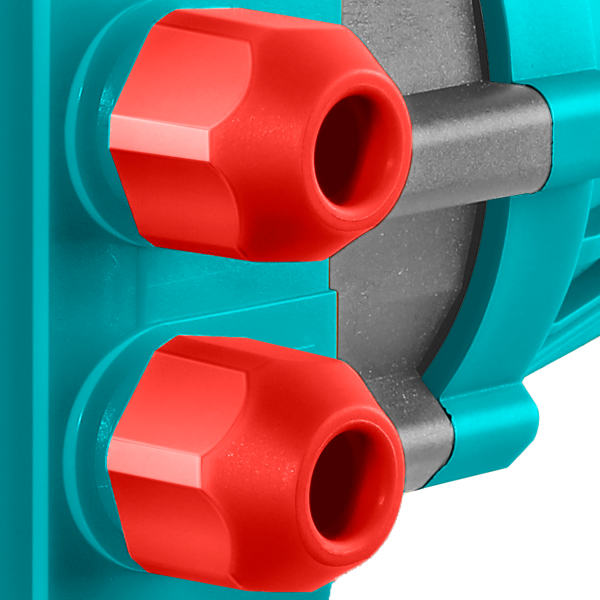

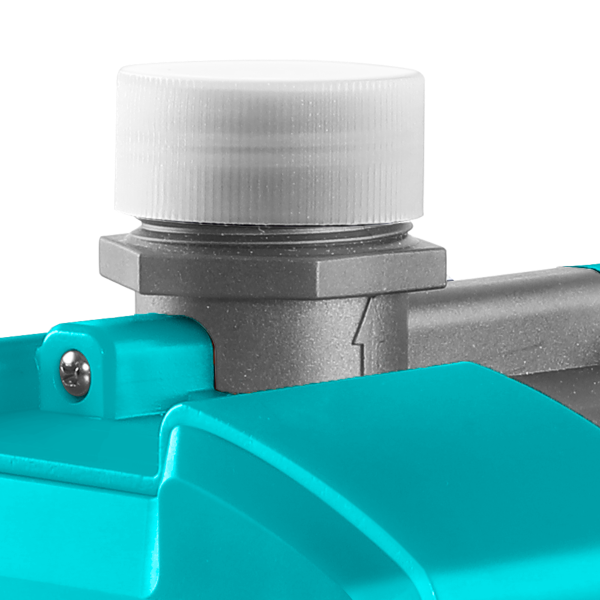

• Standard Fitting: Features universal 1" x 1" inlet and outlet ports for easy integration into existing plumbing
• Dry-Run Protection: Helps prevent pump motor burnout by monitoring flow and stopping the pump if the water source runs dry

Technical Specifications:

• Voltage: 220-240V (50/60Hz)
• Max Pressure: 10 Bar (145 PSI)
• Protection: IP65 Rated
• Connection: 1-inch male threaded
