Sewage Submersible Pump for Dirty Water 750W (1.0HP) - 1"

Description

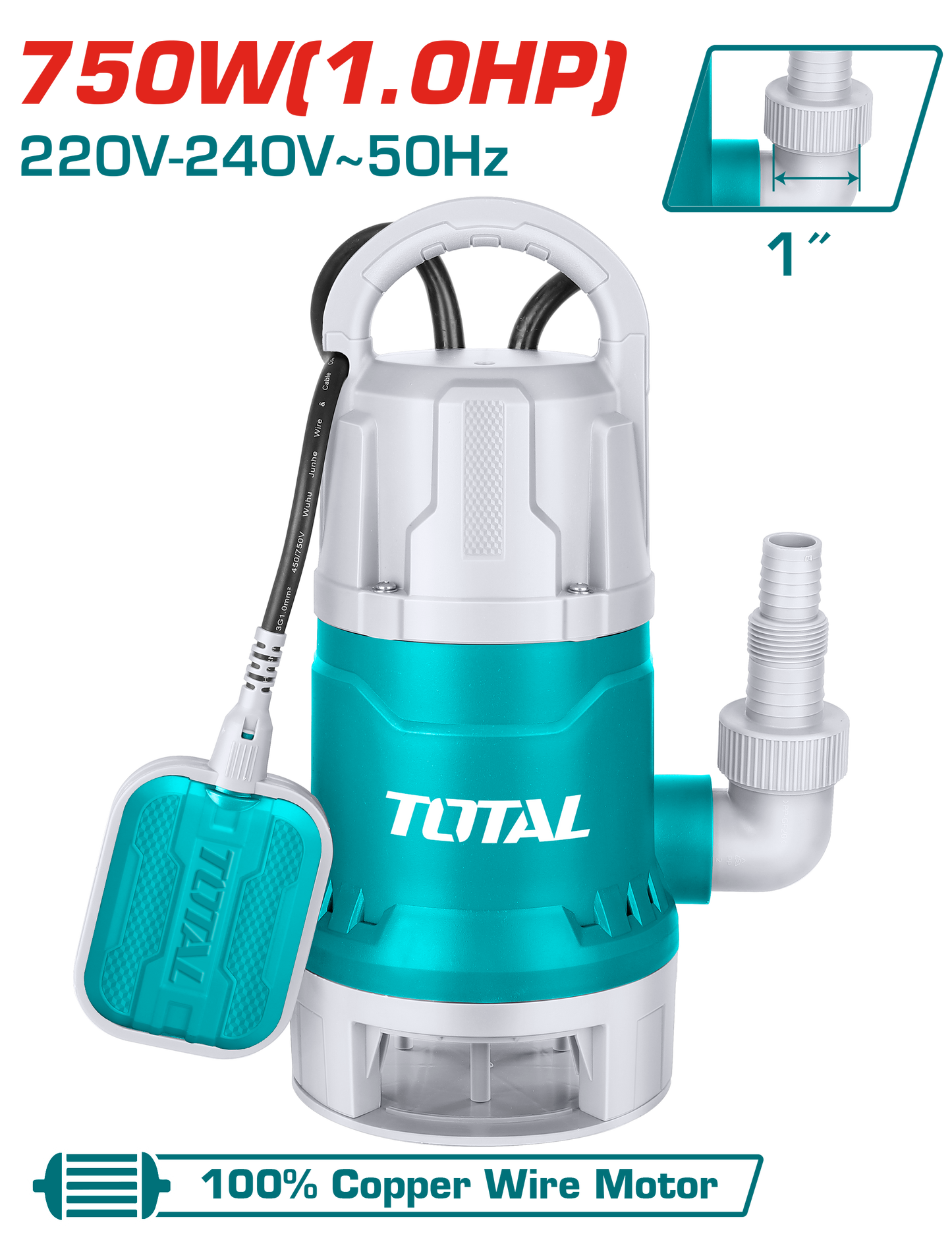

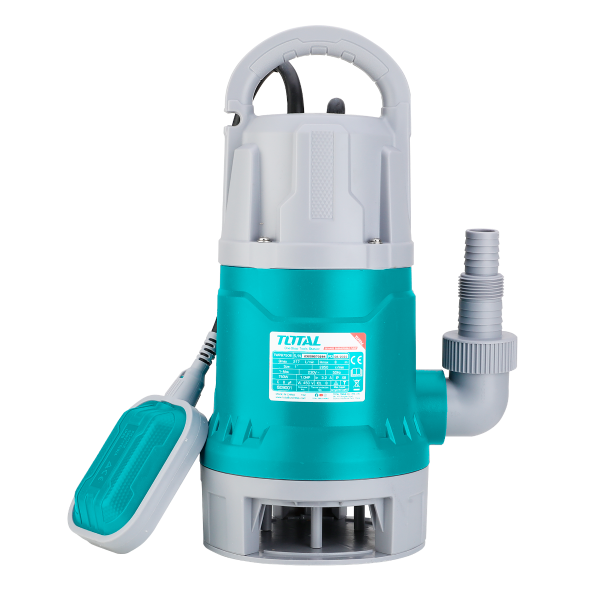

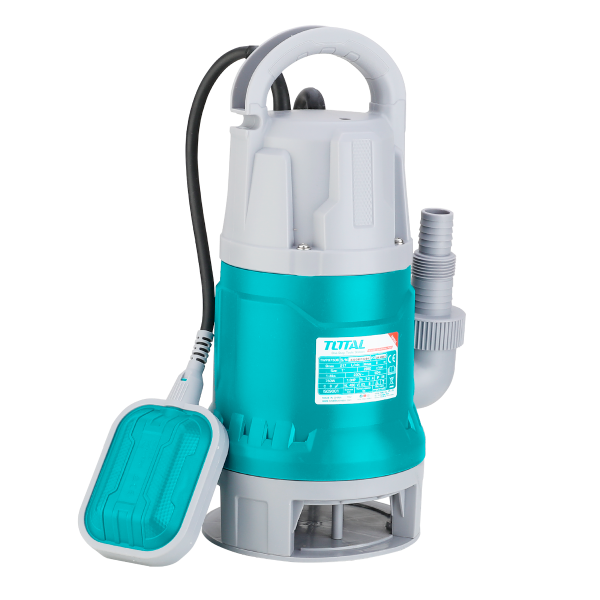

TOTAL Sewage Submersible Pump (TWP87506)

TOTAL TWP87506 is an industrial-grade submersible wastewater pump engineered for heavy-duty drainage, flood mitigation, septic tank evacuation, and site dewatering operations. Housing a high-efficiency 1.0 Horsepower pure copper motor inside a rugged, corrosion-proof chassis, this powerful pumping system is built to rapidly relocate highly contaminated gray water, organic silt, and particulate-laden wastewater up to depths of 7 meters.

Industrial Motor Engineering & Thermal Reliability

• 100% Pure Copper Wire Motor: Wound entirely with premium copper conductors to provide superior electrical conductivity, low thermal resistance, and exceptional torque compared to cheap aluminum alternatives, preventing motor burnout during continuous running cycles
• Robust 750W (1.0 HP) Power Profile: Delivers an expansive kinetic output that easily handles the elevated drag of viscous, sediment-heavy liquids, maintaining a highly consistent discharge velocity
• Extended 9-Meter Power Cable: Outfitted with an industrial-grade, water-sealed 9m electrical cord, providing a wide operational reach down deep collection sumps and manholes without requiring hazardous underwater extensions

Automated Protection & Mechanical Performance

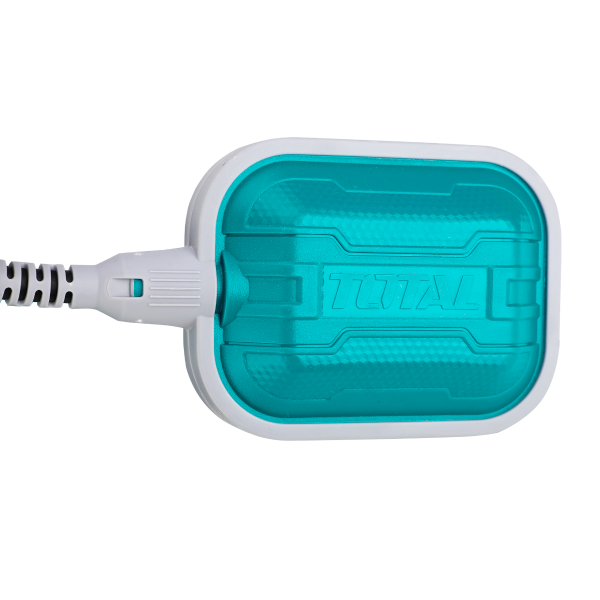

• Integrated Mechanical Float Switch: Features an automated tethered float switch that activates the pump as fluid levels rise and instantly cuts power when the water drops below safe thresholds, protecting the internal seals from destructive dry-running failure
• High-Volume Discharge Dynamics: Optimized internal impeller geometry achieves a massive maximum flow rate of 217 Liters per Minute (13,020 L/hr) with a maximum vertical delivery height (Head) of 8 meters

Technical Specifications:

• Operating Voltage: 220 - 240V ~ 50Hz Standard single-phase grid power
• Rated Power Output: 750 Watts / 1.0 Horsepower
• Maximum Vertical Head: 8 meters
• Maximum Volumetric Flow Rate: 217 Liters / minute
• Maximum Submersion Depth: 7 meters
• Discharge Port Diameter: 1 inch
• Internal Motor Construction: Pure Copper Wire Windings
• Power Cable Length: 9 meters
• Fluid Compatibility: Dirty Water / Industrial Sewage / Gray Water Slurry
