Industrial 4-Step Pendulum Reciprocating Demolition Saw 1200W - SDS Chuck

Description

TOTAL Reciprocating saw (TS1001201)

TOTAL TS1001201 is a high-capacity, site-grade corded reciprocating saw engineered to handle aggressive demolition, commercial plumbing pipe tracing, HVAC structural ducting, fire and rescue work, and heavy timber framing modifications. Driven by a high-output 1200-Watt industrial motor optimized for 220-240V grids, this demolition saw features an advanced 4-step pendulum function that allows users to shift between fine, straight mechanical profiling and lightning-fast, aggressive orbital demolition cuts. Equipped with a variable speed thumbwheel dialing 1000 to 2800 RPM and a rapid SDS tool-free blade clamping system, it cleanly slices through deep wood up to 210mm and structural steel up to 20mm

High-Output 1200W Motor & 4-Step Orbital Pendulum Drive

• Relentless 1200W Industrial Motor Core: Built with heavy-gauge, high-temperature copper windings designed to maintain peak stroke speed and torque under heavy, continuous loading during deep framing wall slice-outs

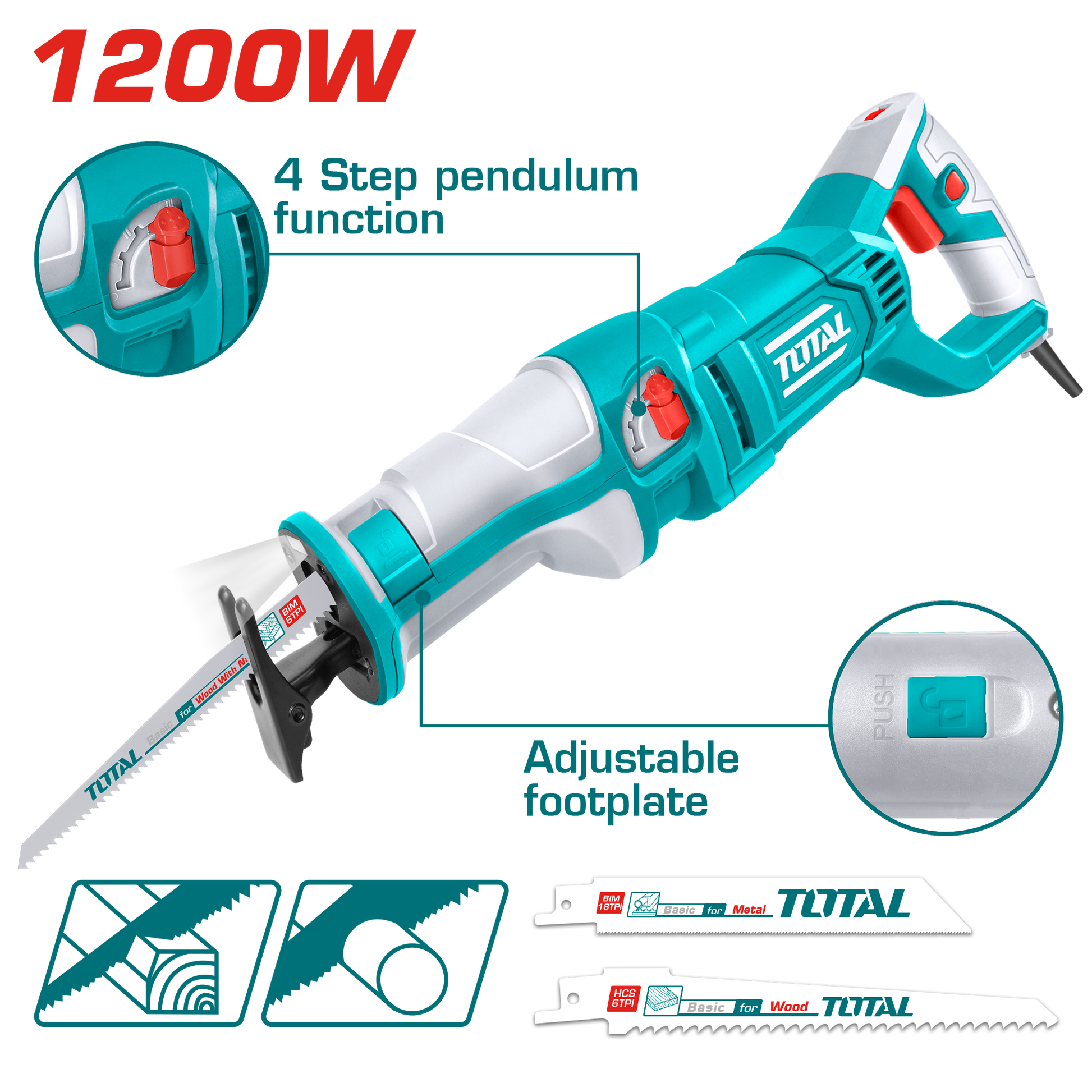

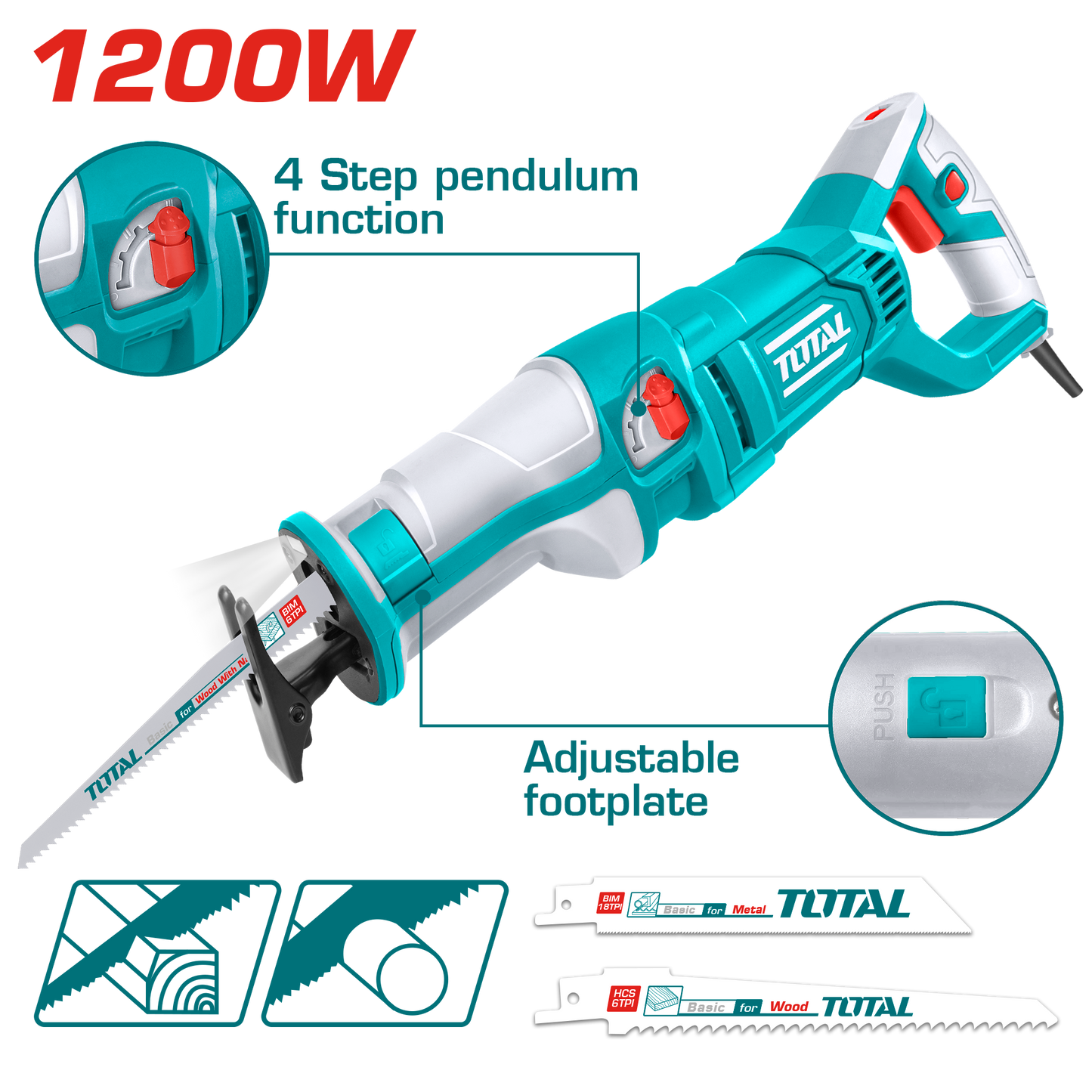

• 4-Position Orbital Pendulum Selector:
• Setting 0 (Straight Reciprocation): Ideal for precise, clean cuts in sheet steel, structural pipes, aluminum extrusion profiles, and hard plastics
• Settings 1–3 (Aggressive Orbital Action): Introduces an elliptical, rock-and-roll blade motion that lifts the blade slightly on the return stroke. This clears sawdust instantly and speeds up wood cutting by up to 40% when tackling framing timbers
• Dial-In Electronic Variable Speed Control: A precision thumbwheel regulates the stroke speed from 1000 to 2800 RPM, letting operators match the tool's speed perfectly to the material density. This prevents blade burning when chewing through tough stainless steel or hardened alloys

Advanced SDS Blade Interface & Professional Field Architecture

• Tool-Free SDS Quick-Change Chuck: Features an easy pull-and-release SDS collar mechanism that locks blades tightly in place without requiring Allen keys or wrenches. This eliminates downtime when changing hot or broken blades mid-task
• Integrated Workspace Lighting Module: An onboard workspace LED light throws a focused beam directly onto the cut line, providing excellent visibility inside dark basement floor joists, crawl spaces, and cluttered ceiling framing
• External Carbon Brush Access Port: Designed with threaded outer brush caps, allowing technicians to swap out worn carbon brushes in minutes without having to dismantle the entire motor casing

Technical Specifications:

• Operating Voltage Rating: 220V–240V ~ 50/60Hz
• Rated Electrical Power Input: 1200 Watts
• No-Load Stroke Velocity Arc: 1000 to 2800 rpm (Variable Wheel Control)
• Tool-Free Clamping Interface: Industrial Quick-Change SDS Chuck
• Orbital Pendulum Control Ring: 4-Step Selection Toggle
• Maximum Cutting Capacity (Wood): 210mm (8.2")
• Maximum Cutting Capacity (Structural Steel): 20mm (0.78)
• Maximum Cutting Capacity (Aluminum): 10mm ($0.39")
• Illumination Module: Integrated High-Output Work Light

What's in the Box

1. TOTAL 1200W Heavy-Duty Reciprocating Saw (TS1001201): 1 piece
2. Industrial-Grade Metal Cutting Saw Blade: 1 piece
3. High-Velocity Wood Cutting Saw Blade: 1 piece
4. Spare Maintenance Set of Carbon Brushes: 1 set
