Industrial Brushless Cordless Rotary Hammer 22mm(7/8") - SDS Plus - 2.0J - P20S 4.0Ah

Description

TOTAL Cordless rotary hammer (TRHLI212282)

TOTAL TRHLI212282 is an industrial-grade, 20V cordless SDS Plus rotary hammer platform engineered for high-repetition concrete anchor setting, heavy masonry channeling, structural steel drilling, and overhead utility mounting. Driven by a high-performance brushless motor that generates a hard-hitting 2.0 Joules of impact energy, this versatile tool delivers an aggressive 0 to 5400 BPM impact rate and variable speed tuning up to 1100 RPM. Outfitted with a rapid, tool-free SDS Plus chuck system and an integrated LED work light, this complete site package includes two high-capacity 4.0Ah lithium-ion batteries, a smart desktop charger, 3 masonry bits, and 1 cold chisel, all safely housed inside a hardshell carrying case.

Advanced 2.0J Brushless Hammer Mechanism & Multi-Mode Flexibility

• Industrial Brushless Power Matrix: Built without wearing carbon contacts, the advanced brushless core runs significantly cooler, completely eliminates electrical sparking, and extends battery runtime by up to 50% compared to brushed alternatives
• Hard-Hitting 2.0 Joules Pneumatic Force: Delivers a true 2.0J impact energy wave directly into the bit face. This makes short work of dense aggregate, stone, and structural concrete walls without requiring excessive forward force from the operator
• Variable Speed & High-Impact Cadence: A precision trigger gives users seamless control over a 0–1100 RPM rotation profile and a 0–5400 BPM impact tempo, allowing for smooth, chip-free hole starts in brittle ceramic tiles or masonry blocks before ramping up to full power

Industrial SDS Plus Interface & Professional Field Architecture

• Tool-Free SDS Plus Chuck System: Features a positive-locking SDS Plus sliding collar that accepts all international SDS Plus accessories. It locks bits tightly in place automatically while allowing rapid, one-handed hot bit swaps on the fly
• Full-Spectrum High Capacity Drilling: Comfortably handles critical structural boring requirements:
• Solid Concrete & Masonry: Up to 22mm diameter holes for heavy chemical anchors, drop-in sleeve pins, and electrical conduit entry
• Structural Steel & Iron: Up to 13mm twist drill capacity for bracket bracing and sheet fabrication attachments
• Thick Structural Timber: Up to 28mm auger boring capacity for heavy-duty framing fasteners and joist utility paths
• Dual-Battery 4.0Ah Continuous Rotation: Ships standard with two large-scale 4.0Ah P20S battery blocks (TFBLI20021), providing the deep current reserve and extended discharge rates required to keep the tool striking hard all day long

Technical Specifications:

• System Operating Voltage: 20V Lithium-Ion (TOTAL P20S Shared Battery System)
• Motor Core Architecture: Wear-Free, Ultra-Efficient Brushless Motor
• Impact Energy Output: 2.0 Joules (1.47ft-lbs) Pneumatic Stroke
• No-Load Operating Speed: 0 to 1100 rpm (Variable Trigger Control)
• Impact Striking Cadence: 0 to 5400 bpm
• Tool Accessory Interface: Industrial Quick-Change SDS Plus Chuck
• Max Drilling Capacity (Concrete): 22mm (7/8") Anchor Spec
• Max Drilling Capacity (Steel): 13mm (1/2") Plate Spec
• Max Drilling Capacity (Wood): 28mm (1-1/8") Beam Spec
• Illumination Module: Integrated High-Output Work Light
• Battery Configuration Supplied: 2x TOTAL 20V 4.0Ah High-Capacity Lithium-Ion Packs (TFBLI20021)
• Charging Infrastructure: 1x Smart Desktop Charger (TFCLI2001), 220–240V ~ 50/60Hz Grid Compliant
• Enclosure Architecture: High-Impact Structural Carrying Case

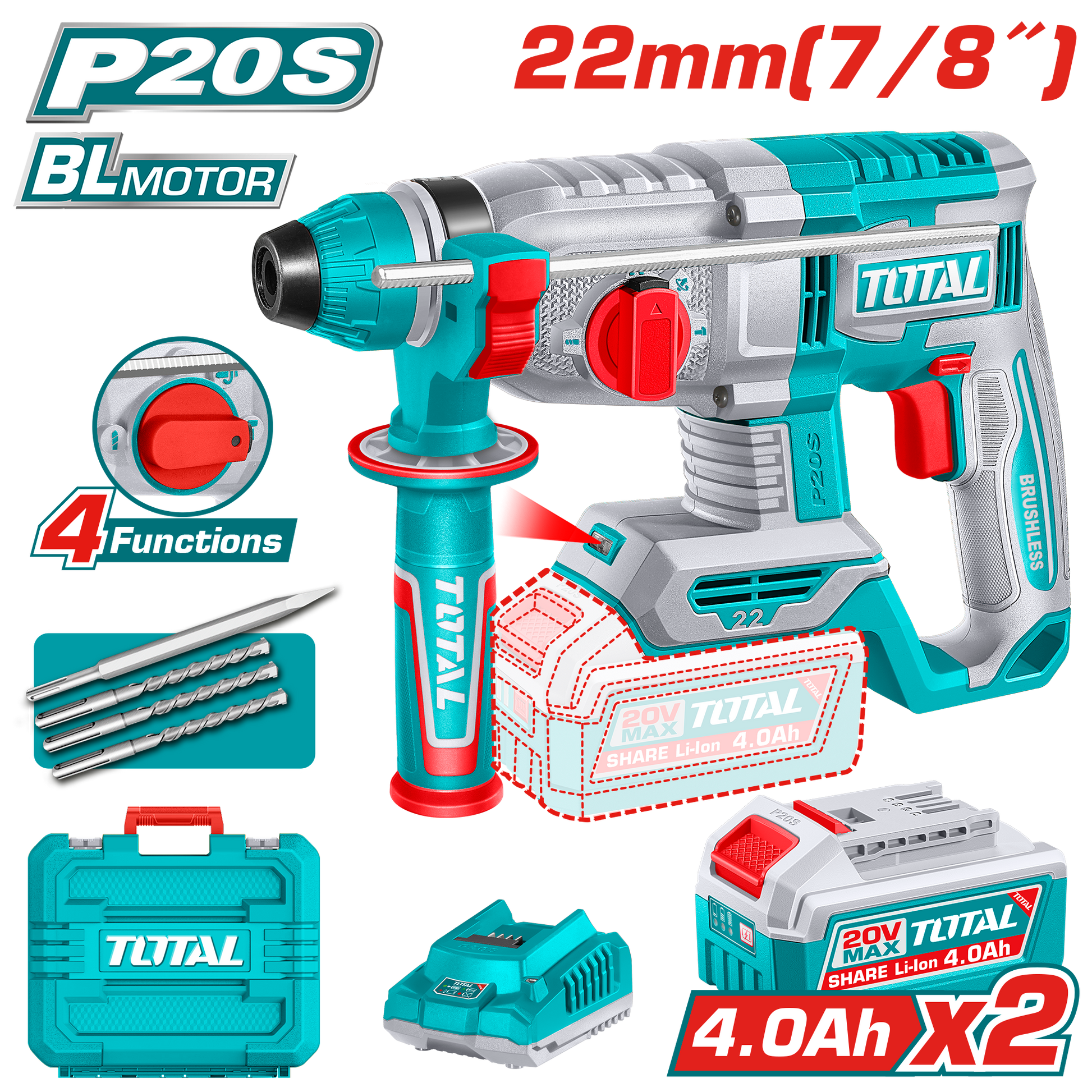

What's in the Box

1. TOTAL 20V Brushless SDS Plus Rotary Hammer (TRHLI212282): 1 piece
2. TOTAL 20V 4.0Ah Lithium-ion Battery Packs(TFBLI20021): 2 pieces
3. TOTAL Intelligent Battery Charger (TFCLI2001): 1 piece
4. Premium SDS Plus Masonry Drill Bits: 3 pieces - 6mm, 8mm & 10mm
5. SDS Plus Cold Point Chisel: 1 piece
6. Depth Gauge Rod: 1 piece
7. Adjustable Auxiliary Side Grip Handle: 1 piece
