Industrial Brushless Cordless Rotary Hammer Ø28mm - SDS Plus - P20S 5.0Ah

Description

TOTAL Cordless rotary hammer (TRHLI202862)

TOTAL TRHLI202862 is an industrial-grade, 20V high-energy cordless SDS-plus rotary hammer engineered for large-diameter concrete anchor boring, deep through-hole utility pipe routing, structural steel mounting, and masonry surface chipping. Driven by a high-torque wear-free brushless motor arranged in an optimized L-shape configuration, this heavy-duty tool outputs a crushing 4.5 Joules of single-blow impact energy. Delivering an aggressive 0 to 4400 blows per minute (BPM) and variable speed control up to 930 RPM, this structural drilling tool comes fully field-ready with two high-capacity 5.0Ah lithium-ion batteries, a rapid 4A desktop charger, three masonry bits, and a cold chisel inside a rugged carrying case.

Advanced L-Shape Brushless Motor & 4.5-Joule Heavy Pneumatic Impact

• High-Torque L-Shape Brushless Core: Built with a vertically mounted brushless motor that eliminates wearing carbon contacts, reduces tool length for better control, and runs cooler under continuous heavy loads. This architecture provides up to 50% more runtime per charge compared to traditional brushed motors
• Massive 4.5-Joule Striking Force: Houses an oversized pneumatic air-piston mechanism that hammers with a true 4.5J of kinetic energy per blow. This enables rapid penetration through dense, rebar-reinforced aggregate and hard granite without needing excessive physical force from the operator
• Heavy-Duty Structural Boring Capacity: Calibrated to handle large-scale commercial installation diameters across multiple building materials:
• Concrete / Masonry: Up to 28mm diameter (ideal for heavy sleeve anchors, rebar tie-ins, and clean conduit paths)
• Structural Steel / Iron: Up to 13mm diameter (using standard adaptive chuck systems)
• Thick Timber / Framing: Up to 40mm diameter (perfect for heavy-gauge auger boring and joist framing layouts)

Industrial SDS Plus Chuck & Dual 5.0Ah High-Amperage Continuous Power

• Tool-Free SDS Plus Keyway Chuck: Features a positive-locking sliding collar that accepts all standard SDS-plus bits and chisels, holding them firmly in place automatically while allowing rapid, one-handed hot accessory changes on the job site
• Dual 5.0Ah Continuous Power Supply: Ships standard with two large-scale 5.0Ah P20S battery cells paired with a high-amperage 4A desktop fast charger. This setup keeps your work moving continuously by allowing one battery block to charge while the other handles heavy structural drilling lines
• Integrated Workspace LED Light: Positioned directly on the tool base to throw a bright beam over the bit tip, ensuring crisp visibility when cutting holes inside poorly lit basements, ceiling grids, and deep utility cavities

Technical Specifications:

• System Operating Voltage: 20V Lithium-Ion (TOTAL P20S Shared Battery Platform)
• Motor Engineering Configuration: Wear-Free, High-Efficiency L-Shape Brushless Motor
• Single-Blow Impact Energy: 4.5 Joules
• No-Load Operating Speed: 0 to 930 rpm (Variable Trigger Control)
• Maximum Impact Strike Cadence: 0 to 4400 bpm
• Tool Accessory Interface: Industrial Quick-Change SDS Plus System
• Max Concrete Drilling Diameter: 28mm (1-1/8")
• Max Steel Drilling Diameter: 13mm (1/2")
• Max Wood Drilling Diameter: 40mm (1-5/8")
• Battery Configuration Supplied: 2x TOTAL 20V 5.0Ah High-Capacity Packs
• Charging Infrastructure: 1x 4A Intelligent Desktop Fast Charger, 220–240V ~ 50/60Hz Compliant
• Enclosure Type: High-Impact Structural Carrying Case

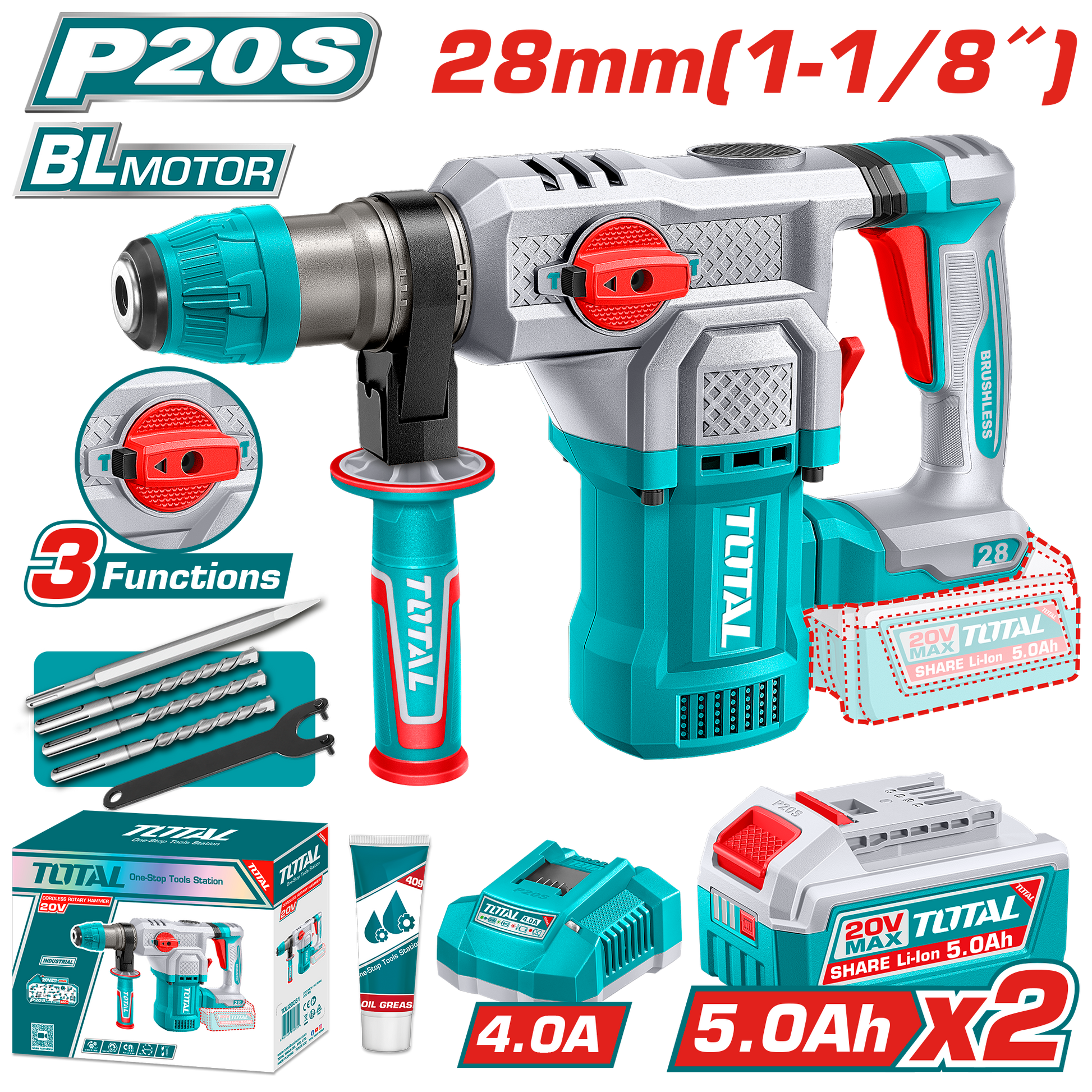

What's in the Box

1. TOTAL 20V Brushless 4.5J Rotary Hammer (TRHLI202862): 1 piece
2. TOTAL 20V 5.0Ah Lithium-ion Battery Packs (TFBLI20531): 2 pieces
3. TOTAL 4A Smart Fast Battery Charger (TFCLI20411): 1 piece
4. Premium SDS Plus Masonry Drill Bits: 3 pieces - 8mm, 10mm, 12mm
5. SDS Plus Cold Demolition Chisel: 1 piece
6. Maintenance Lubricant Grease Tube: 1 piece
7. Internal Chamber Adjustment Spanner Wrench: 1 piece
