Industrial Brushless Cordless Impact Hammer Drill 86Nm - 13mm Metal Chuck - P20S 2.0Ah

Description

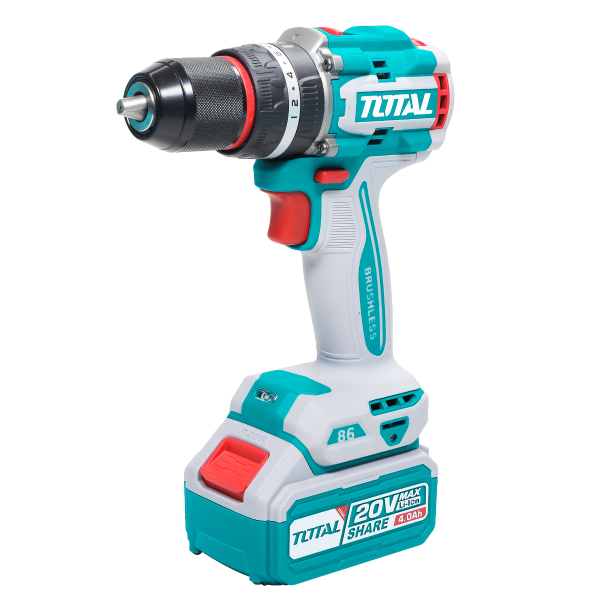

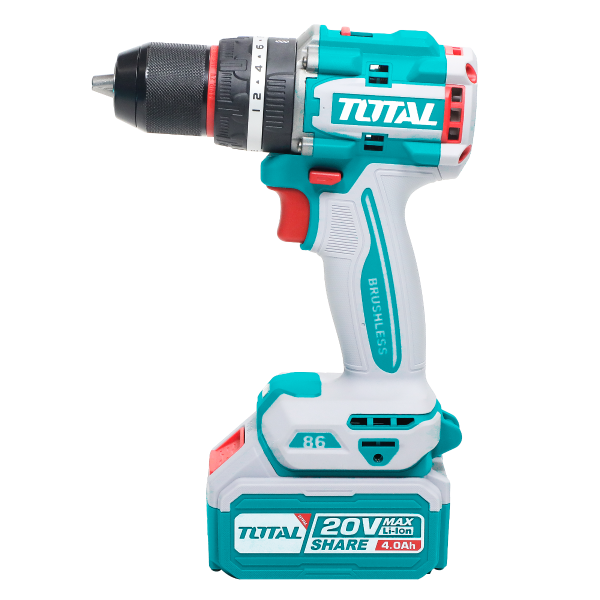

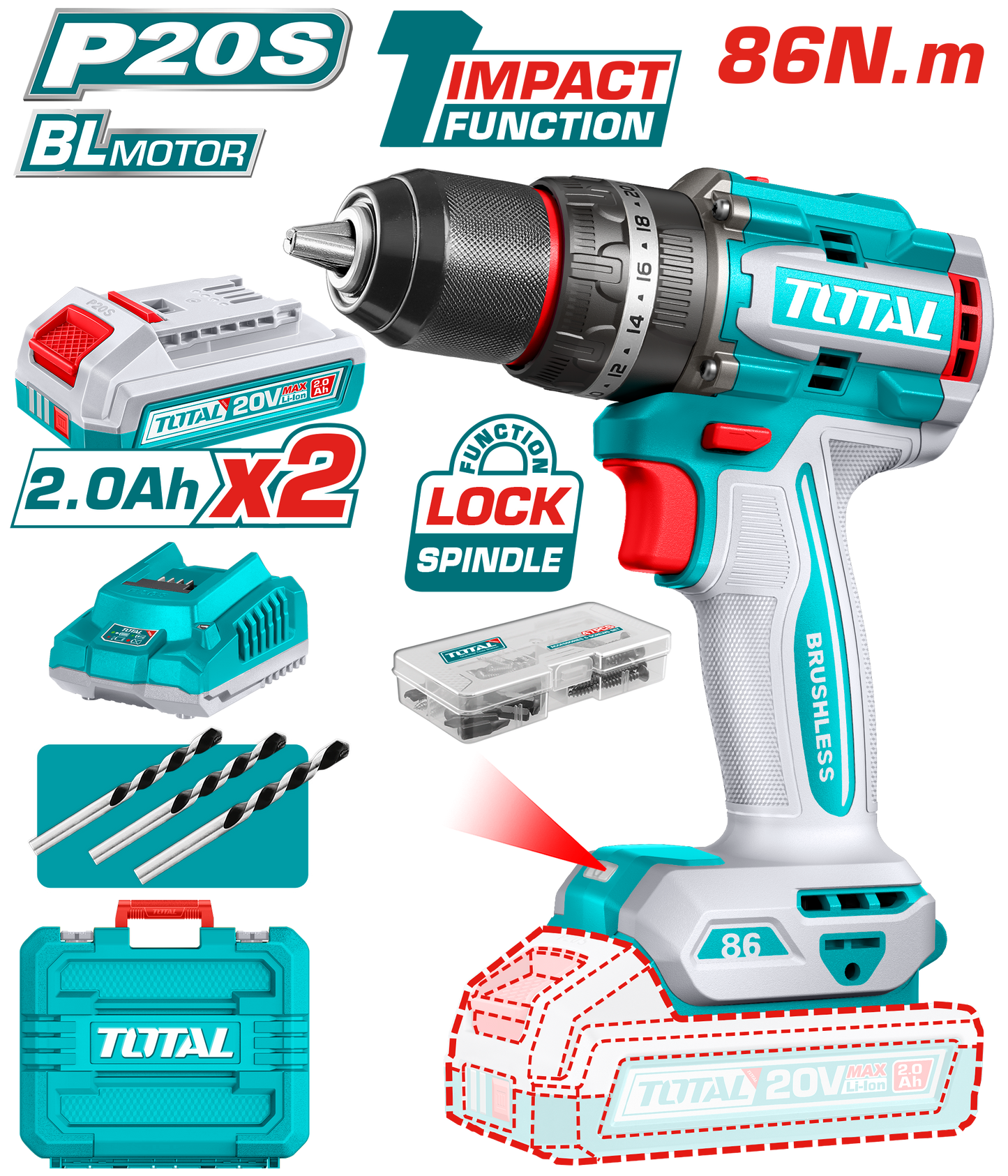

TOTAL Brushless cordless impact drill (TIDLI208687)

TOTAL TIDLI208687 is an industrial-grade, 20V high-torque brushless percussion drill platform engineered for structural carpentry, electrical commercial rough-ins, HVAC duct tracking, mechanical maintenance, and high-volume masonry anchor boring. Driven by an advanced brushless motor that generates a massive 86Nm of maximum fastening torque, this heavy-duty hammer drill features a precision-machined 13mm single-sleeve all-metal chuck with an integrated spindle lock. Equipped with a mechanical 2-speed gearbox and a versatile 22+1+1 clutch matrix, this comprehensive fleet kit comes ready for immediate site deployment with two 2.0Ah lithium-ion batteries, a smart charger, and a 50-piece accessory package enclosed in a hardshell carrying case.

Advanced Brushless Motor & 86Nm Torsional Force

• Next-Generation Brushless Power Matrix: Engineered without carbon brushes, this high-efficiency motor completely eliminates internal friction and electrical sparking. This results in up to 50% more runtime per charge, a significantly cooler operating temperature under heavy structural loads, and zero motor brush maintenance

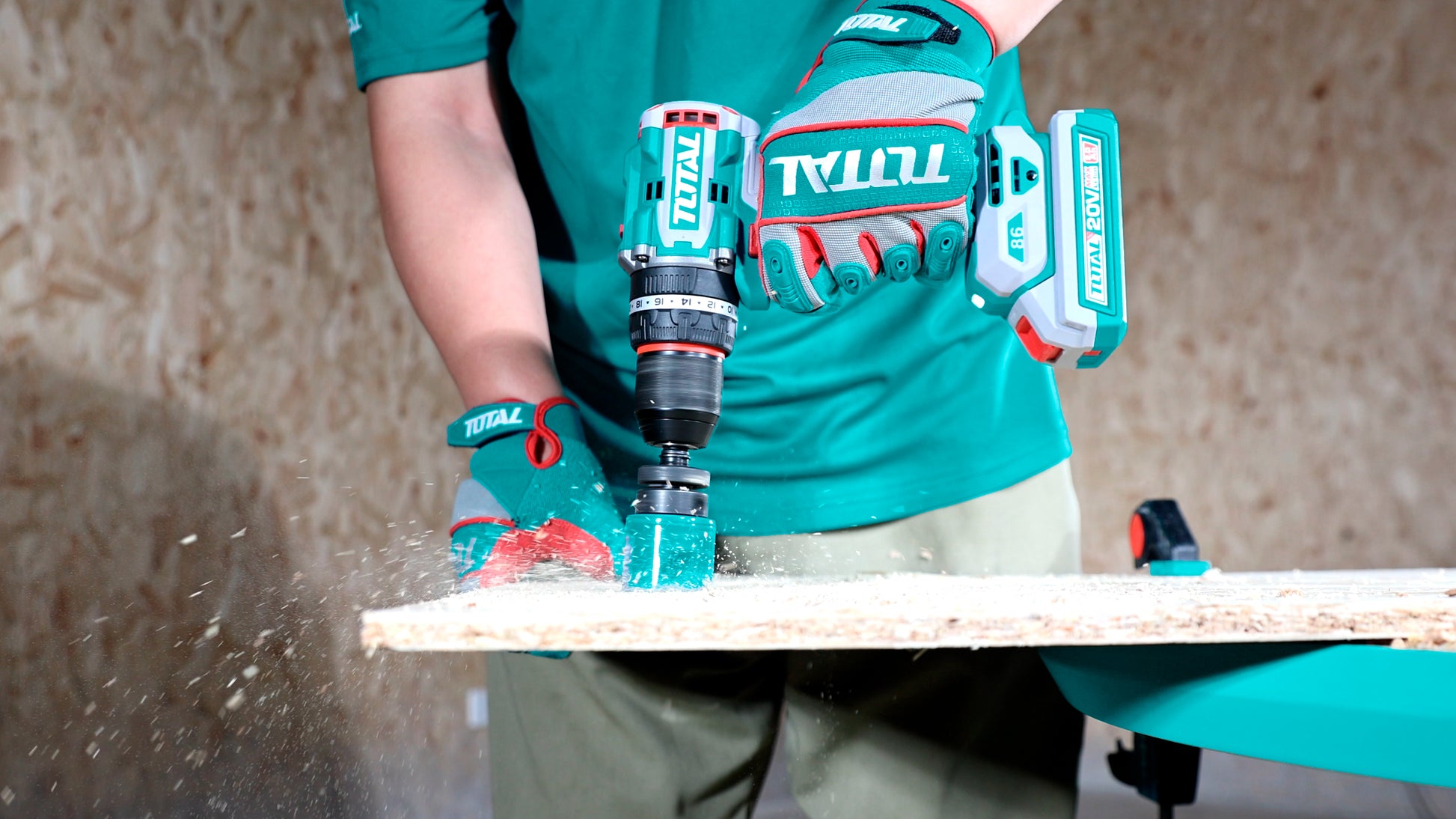

• 86Nm High-Performance Torque Yield: Delivers massive rotational energy, giving the drill the raw muscle needed to cleanly drive large auger bits through structural timber, rotate large hole saws through sheet metal, and sink heavy lag screws without stalling

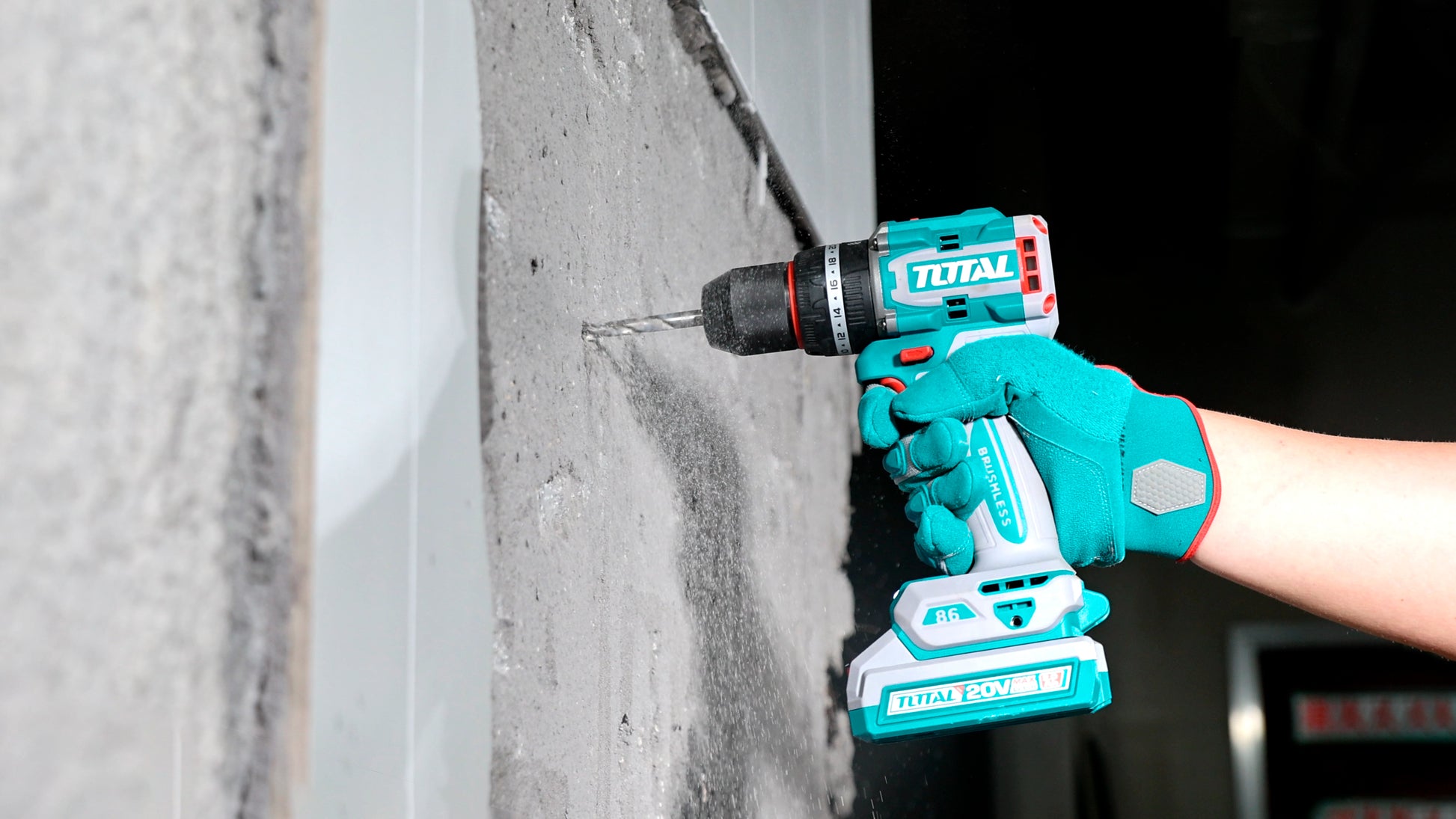

• 30,000 BPM High-Velocity Hammer Core: Engaging the percussion drilling mode activates an internal hammer mechanism that strikes the spinning bit at a rate of 30,000 blows per minute (BPM), pulverizing cured concrete, clay brick, stone, and cinder blocks

All-Metal Chuck Architecture & Precision Control

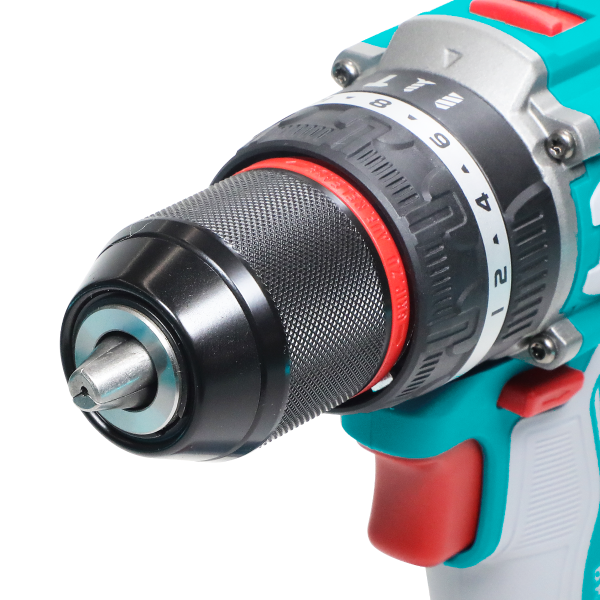

• 13mm Heavy-Duty Single-Sleeve Metal Chuck: Built with a premium, all-metal ratcheting chuck that provides exceptional bit retention and grip strength. The single-sleeve design, paired with an automatic spindle lock function, allows technicians to tighten drill bits firmly with one hand
• Mechanical 2-Speed Gearbox & 24 Clutch Settings:
• Gear 1 (Low Speed / High Torque: 0–500 RPM): Optimized for large-diameter drilling, heavy hole saws, and precise structural driving
• Gear 2 (High Speed / Low Torque: 0–2000 RPM): Tailored for rapid-fire drilling in sheet steel, alloys, plastics, and wood
• 22+1+1 Torque Selector Ring: Features 22 progressive torque slip positions for precision fastening, 1 dedicated rotary drilling lock-out mode, and 1 dedicated hammer percussion setting

Technical Specifications:

• System Operating Voltage: 20V Lithium-Ion (TOTAL P20S Share Battery Platform)
• Motor Technology Type: Wear-Free Brushless Core
• Maximum Torque Performance: 86Nm
• Dual-Speed Mechanical Arc: Low: 0–500 RPM | High: 0–2000 RPM
• Maximum Impact Striking Rate: 30,000 bpm
• Chuck Construction / Capacity: All-Metal Single-Sleeve Ratcheting Ring | 13mm (1/2")
• Clutch Setting Index: 22 Torque Settings + 1 Rotary Drill Mode + 1 Percussion Hammer Mode
• Integrated Secondary Safety Features: Automatic Spindle Lock | Anti-Kickback Control | LED Work Light

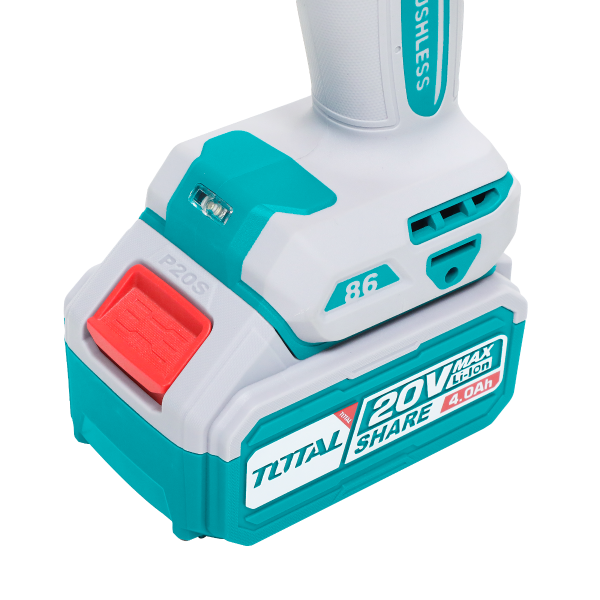

• Battery Configuration Supplied: 2x TOTAL 2.0Ah Lithium-Ion Packs (TFBLI20011)
• Charging Infrastructure: 1x Smart Desktop Charger (TFCLI2001), 220–240V ~ 50/60Hz Grid Ready
• Enclosure Type: Structural Hard-Shell Carrying Case

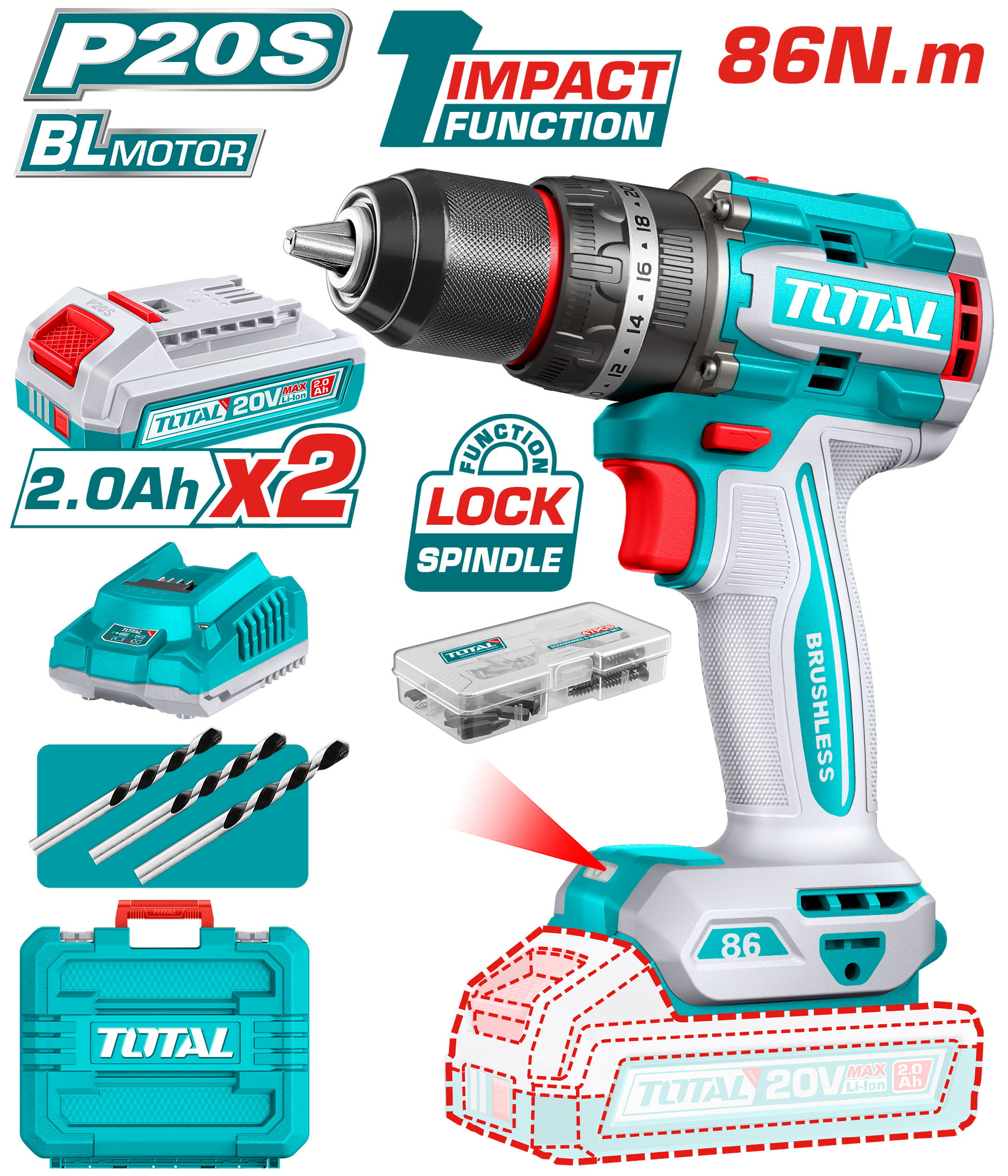

Comprehensive Component List

1. TOTAL 20V 86Nm Brushless Impact Drill (TIDLI208687): 1 piece
2. TOTAL 20V 2.0Ah Lithium-Ion Battery packs (TFBLI20011): 2 pieces
3. TOTAL Intelligent Battery Charger (TFCLI2001): 1 piece
4. Professional Ground Masonry Drill Bits: 3 pieces
5. Multi-Discipline Workspace Drill & Driver Accessories (Hex, Star, Slotted, Phillips, & Nut-Setters): 47 pieces
