Heavy-Duty Industrial Hand Pallet Truck 3000kg (3-Ton) - 540×1150mm

Description

TOTAL Hand pallet truck (THT301301)

TOTAL THT301301 is a commercial-grade, 3-ton manual hydraulic hand pallet truck purpose-built for high-density warehouse logistics, freight distribution hubs, manufacturing plants, and material transport. Engineered with a massive 3000kg load capacity, this industrial jack features a standardized 540×1150mm fork profile, making it fully compatible with standard Euro and industrial pallets. Outfitted with smooth-rolling polyurethane steering wheels and tandem load rollers, the THT301301 glides smoothly across concrete floors without scuffing or damaging floor surfaces under max capacity loads.

High-Capacity Hydraulic Lifting & Ergonomic Operator Controls

• Heavy-Duty 3000kg Hydraulic System: Features a fully sealed, leak-proof hydraulic pump assembly that provides smooth, effortless lifting from a low profile of 85mm up to a maximum elevation of 200mm
• Comfortable Rubber-Coated Grip Handle: Designed with a three-position control lever (Raise, Neutral, Lower) integrated into a contoured, shock-absorbing rubber handle for easy one-handed operation
• Reinforced Structural Steel Frame: Channel-reinforced steel forks prevent sagging or structural twist under heavy asymmetrical loads

Polyurethane Wheels & Tandem Roller Architecture

• Quiet, Non-Marking Polyurethane (PU) Wheels: Large 200 x 50mm steering wheels combined with 80 x 70mm tandem load rollers distribute weight evenly, offering quiet rolling and high wear resistance on factory floors
• Tandem Roller Design for Easy Entry: Dual tandem front rollers easily roll over floor expansion joints, threshold plates, and uneven surfaces, ensuring smooth pallet entry and exit without jarring the load

Technical Specifications:

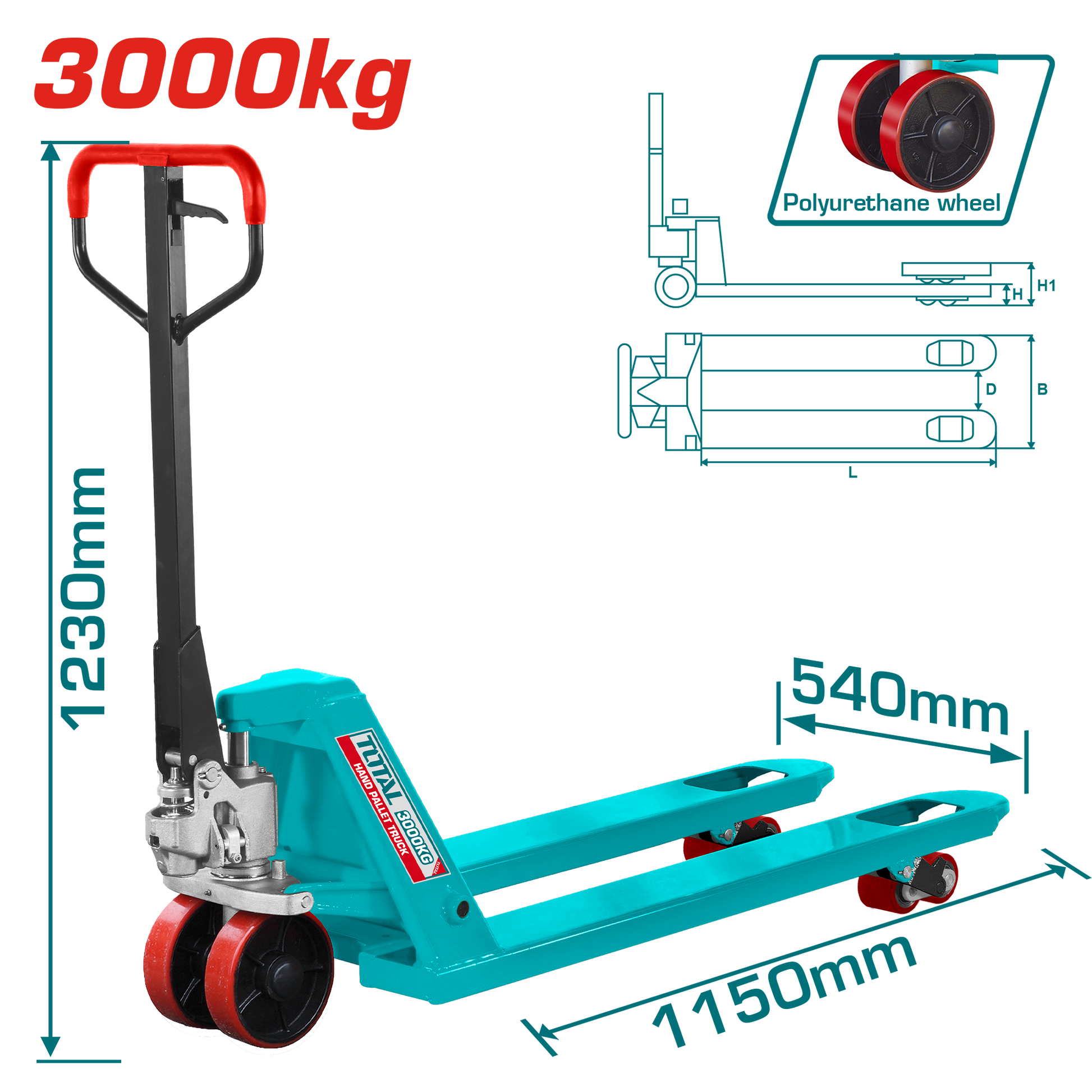

• Rated Lifting Capacity (Q): 3000kg (6,600lbs) Heavy-Duty Load Rating
• Overall Fork Dimensions (B×L): 540 mm × 1150 mm Standard Width/Length
• Fork Inner Span Distance (D): 220 mm Internal Clearance
• Minimum Lowered Fork Height (H): 85 mm Low-Profile Entry Height
• Maximum Raised Fork Height (H1): 200 mm Peak Lift Clearance
• Steering Wheel Dimensions: 200 x 50mm High-Capacity Wheel Profile
• Front Tandem Load Rollers: 80 x 70mm Dual Assembly Per Fork
• Wheel Material Composition: Non-Marking, Wear-Resistant Polyurethane (PU)
• Operator Handle Feature: Integrated 3-Position Lever with Ergonomic Rubber Grip
• Primary System Applications: Warehouse logistics, shipping docks, industrial manufacturing floors, wholesale distribution, and freight staging areas

What's in the Box

1. TOTAL 3000kg Heavy-Duty Manual Hand Pallet Truck THT301301: 1 piece
2. Pre-assembled Hydraulic Pump and Control Handle Assembly: 1 piece
