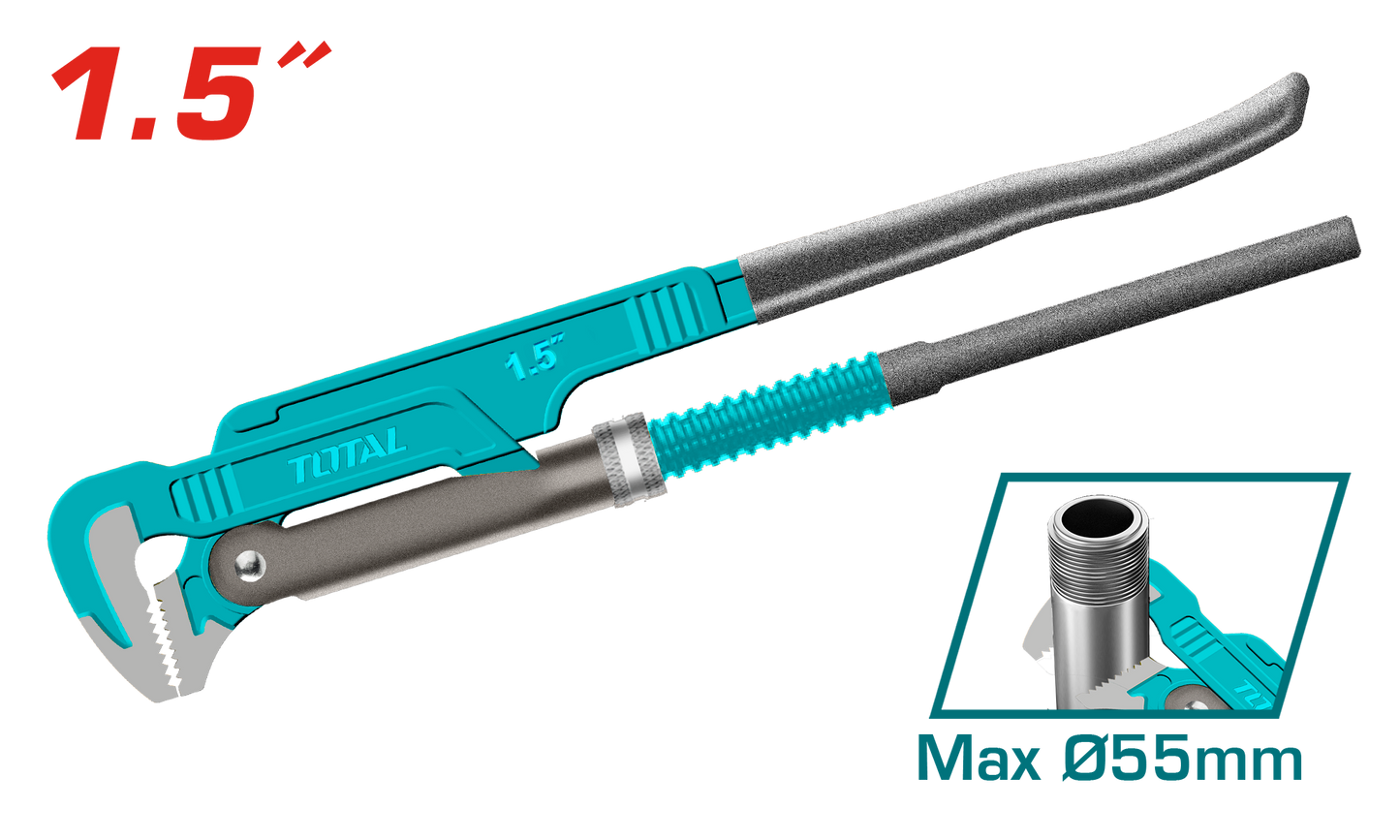

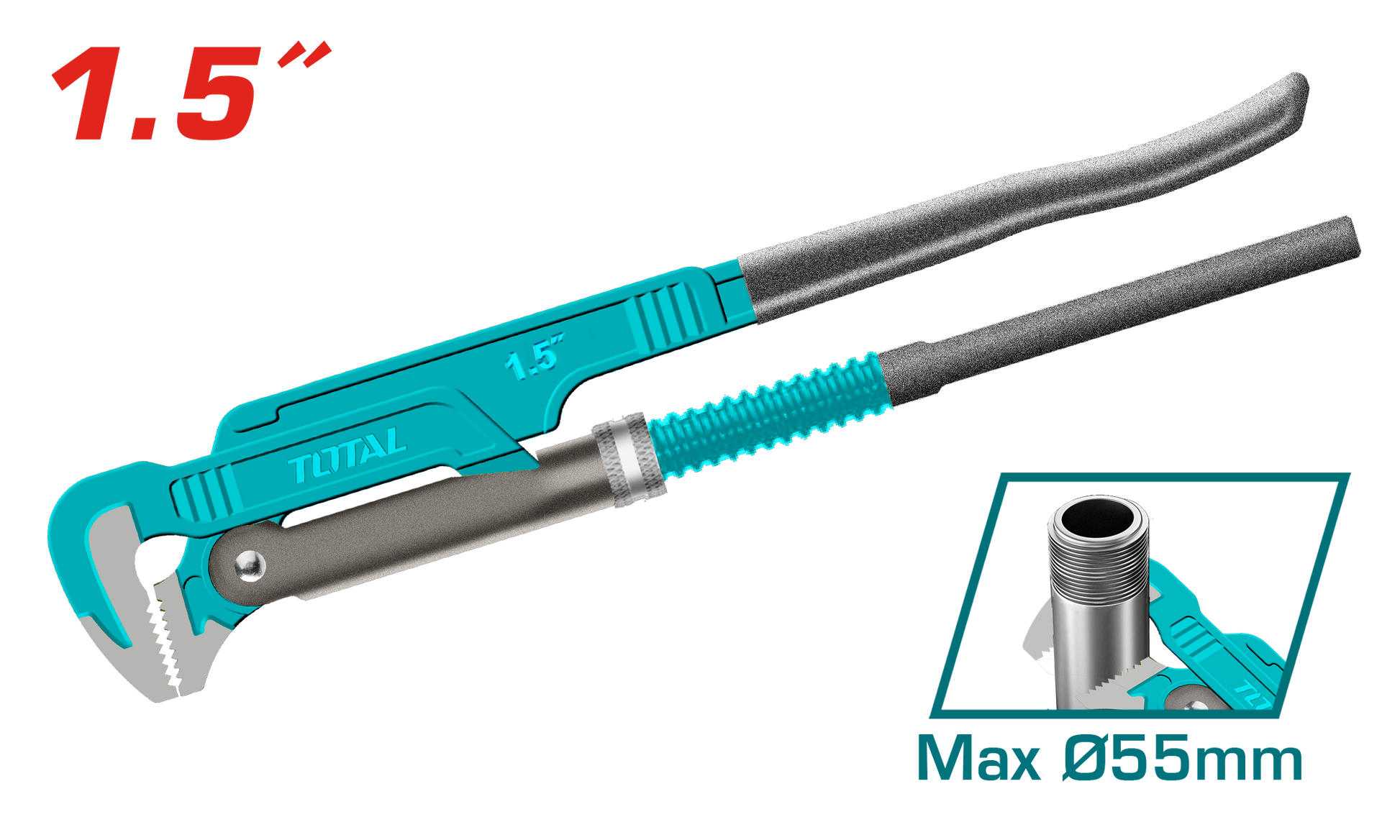

90° Heavy-Duty Swedish Pipe Wrench 1-1/2" (Ø55mm Capacity)

Description

TOTAL 90° Heavy duty Swedish pipe wrench (THT172151)

TOTAL THT172151 is an industrial-grade Swedish-pattern pipe wrench engineered to deliver extreme rotational torque on smooth metal pipes, heavy threaded fittings, and weathered plumbing unions. Featuring an optimized 90-degree right-angle jaw geometry and a maximum clamping threshold of 55mm (1-1/2 inches), this specialty lever tool bypasses the spatial limitations of conventional pipe wrenches, making it a critical asset for commercial mechanical contractors, gas line installers, and industrial plant maintenance teams.

90-Degree Spatial Optimization & Self-Locking Teeth

• 90° Right-Angle Jaw Trajectory: The jaws are oriented perpendicular to the handles, allowing the wrench to slip around pipes positioned flush against flat walls, tight corners, or dense parallel service lines
• Induction-Hardened Carbon Steel Build: Forged from high-tensile structural carbon steel and finished with an advanced inactivation treatment (chemical passivating surface layer) that actively resists corrosion, chemical fluids, and abrasion
• Offset Progressive Tooth Pattern: Milled with induction-hardened teeth angled against the direction of rotation. This creates a secure, self-locking three-point mechanical bite that digs into smooth surfaces, eliminating slippage even under extreme force

Heavy-Duty Reinforced Mechanical Joints

• Solid-Rivet Architecture: The critical pivot link is secured with a heavy-duty, hydraulically flattened solid rivet. Unlike cheap split-pins or threaded bolts that wobble and shear over time, this solid steel core maintains rigid jaw tracking under massive bending stress
• Knurled Non-Slip Adjustment Nut: Outfitted with a precision-threaded adjustment ring that locks tightly into position, preventing jaw drift or widening while resetting the tool between wrench strokes

Technical Specifications

• Nominal Size Capacity: 1-1/2 inches
• Maximum Clamping Diameter: 55mm
• Jaw Configuration: 90-Degree Swedish Pattern
• Material Composition: Forged Heavy-Duty Carbon Steel
• Surface Protection: Anti-wear chemical inactivation treatment
• Joint Reinforcement: High-tensile solid steel structural rivet
• Primary Applications: Installing galvanized iron pipes, breaking seized threaded fittings, servicing industrial gas lines, managing boiler manifolds, and commercial well-pump maintenance
