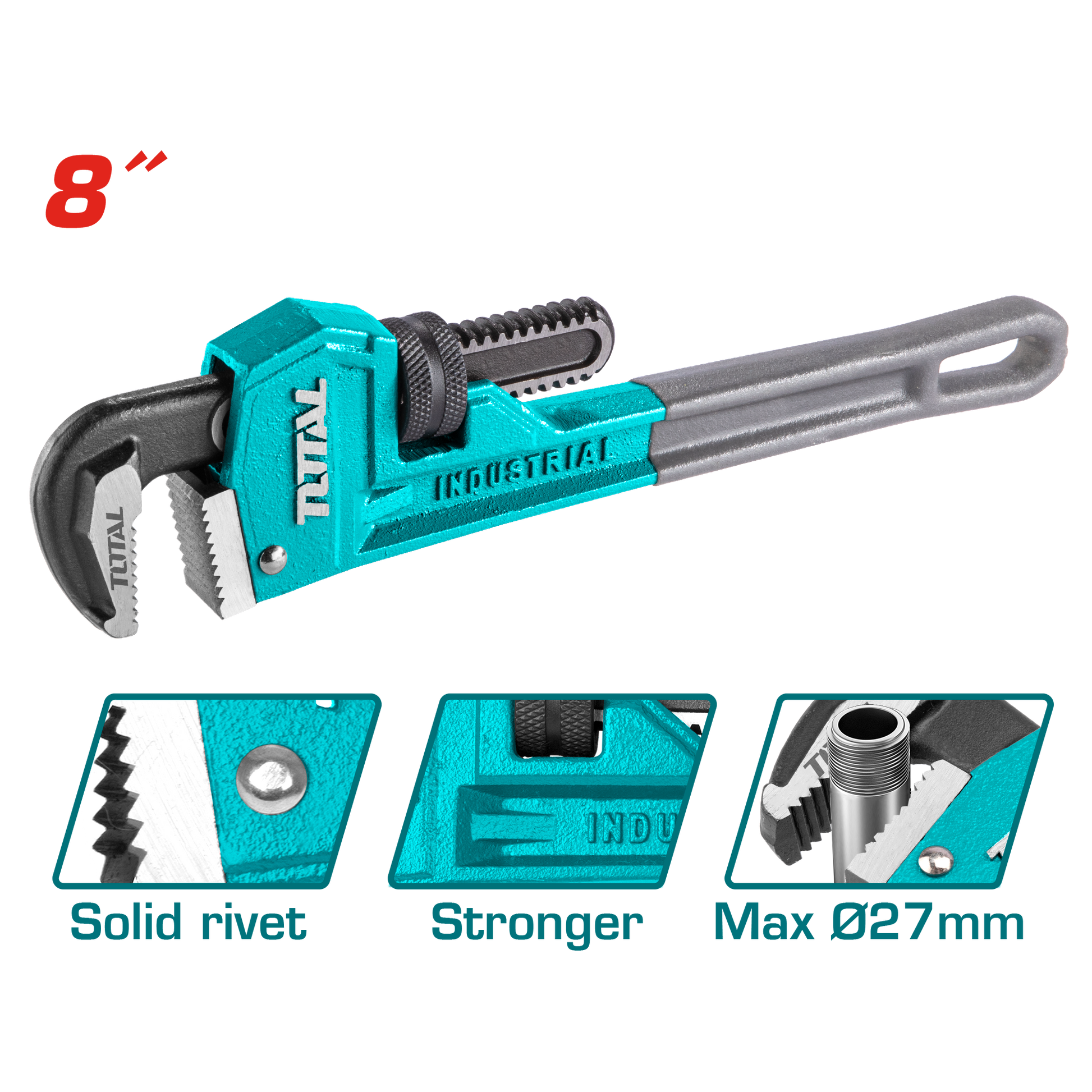

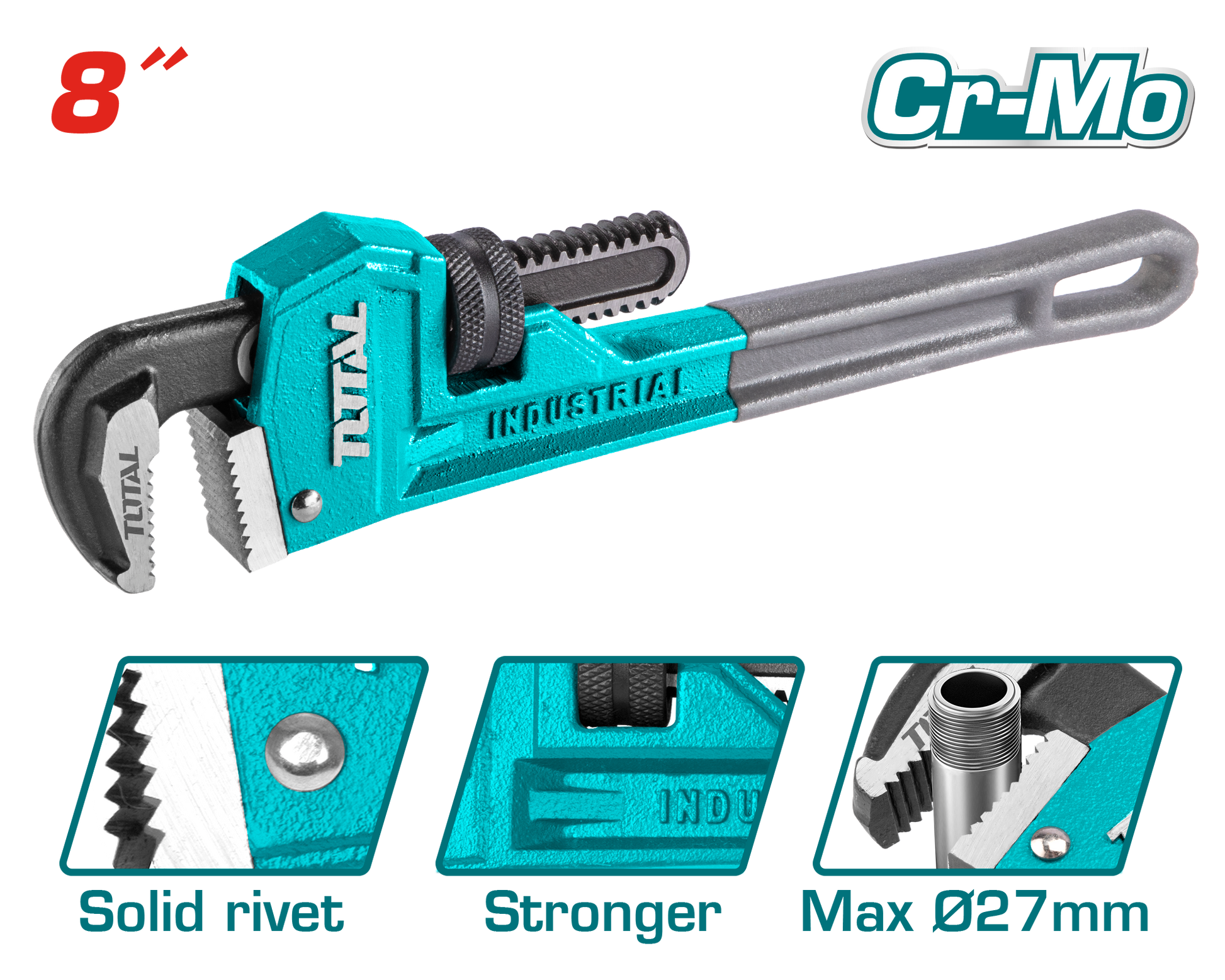

Industrial Ductile Iron Pipe Wrench 8"(200mm) - Ø27mm Capacity

Description

TOTAL Pipe wrench (THT170806)

TOTAL THT170806 is an industrial-grade, heavy-duty pipe wrench engineered for high-torque pipe fitting, commercial plumbing installation, and mechanical extraction. Calibrated to a highly compact 8-inch (200mm) profile, this rugged hand tool features an advanced multi-material construction designed to deliver an aggressive lock-on bite across conduits, black iron pipes, and rounded fasteners up to 27mm in diameter.

Advanced Metallurgy & Heavy-Duty Frame Engineering

• Chrome Molybdenum (Cr-Mo) Mobile Jaw: The moving hook jaw is forged from premium Cr-Mo alloy steel, specifically engineered to withstand extreme tensile stresses and resist jaw-tooth chipping under immense torque
• Ductile Cast Iron Body: Unlike standard grey iron alternatives that can crack under sudden shock loads, the main handle and housing are cast from high-grade ductile iron, providing excellent structural yield strength and flex resistance
• Defensive Surface Finish: The body and jaw assemblies are treated with a heavy-duty black-oxide anti-corrosion barrier to repel job-site moisture, paired with precision-ground, highly polished tooth faces
• Solid Rivet Pin Architecture: The internal pivot assembly is secured with a heavy-duty solid steel rivet. This prevents the hook jaw from rocking sideways out of alignment when shifting between quick adjustments and full breaking force

Mechanical Mechanics & Thread Control

• Inactivate Surface Treatment: The adjustment mechanism undergoes a specialized surface treatment to ensure smooth rolling performance, preventing the knurled nut from binding or freezing when exposed to abrasive site dust and fluids
• Self-Locking Hook Jaw Threads: Features a deep-threaded adjustment track that holds its position tightly under load, keeping the jaws locked onto the pipe without slipping out of calibration

Technical Specifications:

• Size / Length: 8 inches / 200mm
• Maximum Clamping Diameter: 27mm
• Mobile Hook Jaw Material: Forged Chrome Molybdenum (Cr-Mo) Steel
• Handle / Body Material: Heavy-Duty Ductile Cast Iron
• Pivot Interface: Solid Steel Rivet Assembly
• Surface Protection: Anti-rust black-oxide finish with a polished face
