Compact Corded Rotary Hammer 650W - Ø22mm - SDS Plus

Description

TOTAL Rotary Hammer (TH306236)

TOTAL TH306236 is a professional-grade, highly agile 650-Watt corded SDS-plus rotary hammer engineered specifically for electrical rough-ins, suspended ceiling framing, HVAC duct anchoring, and interior partitioning. Built with a responsive, high-speed vertically optimized 650W power core, this compact masonry tool unloads a precise 1.7 Joules of single-blow pneumatic impact energy. Operating at an accelerated 0 to 1700 RPM variable speed and a high-cadence 0 to 5500 BPM impact rate, this lightweight tool provides exceptional control for drilling anchor points without cracking brittle masonry. The complete out-of-the-box kit includes three premium SDS-plus drill bits, a replacement set of carbon brushes, and a rugged Blow Mold Case (BMC).

High-Speed 1.7J Pneumatic Core & Fatigue-Free Overhead Ergonomics

• Optimized 1.7-Joule Impact Punch: Engineered to deliver fast, localized impact shocks rather than massive destructive fracturing. This structural tuning makes it highly efficient at boring anchoring holes while preventing edge blowouts in brick, block, and cured concrete slabs
• Lightweight Pistol-Grip Form Factor: Features a compact, balanced design that allows for easy, single-handed positioning. It dramatically reduces neck, arm, and shoulder fatigue when mechanics work off ladders or scaffolding to run overhead hangers and conduit clamps
• Pro-Grade Drilling Capacities: Built to seamlessly transition across varied commercial interior materials:
• Concrete / Masonry: Up to 22mm diameter (optimized for standard 6mm to 12mm drop-in sleeve pins and shield anchors)
• Structural Steel / Metalwork: Up to 3mm diameter (for self-tapping pilot paths, junction boxes, and metal studs)
• Timber / Drywall Framing: Up to 25mm diameter (for passing utility pipes, wiring bundles, and structural framing bolts)

Variable Trigger Speed Precision & Extended Field Service Life

• Dynamic Variable Speed Trigger: Gives the operator absolute control from 0 to 1700 RPM. This allows you to feather the trigger for precise spot-starting on smooth tile or slick concrete surfaces, eliminating bit walking and damaged layouts
• On-Site Carbon Brush Service Pack: Ships with a complete extra set of high-grade copper carbon brushes. This allows procurement managers or field technicians to quickly swap worn brushes right on the site, eliminating factory service wait times and keeping the tool on the line
• Tool-Free Sliding SDS Plus Keyway: Utilizes a standard spring-loaded quick-release chuck collar that accepts all international SDS-plus accessories, automatically locking them in place while sealing out internal masonry grit

Technical Specifications:

• Operating Grid Voltage: 220V–240V ~ 50/60Hz (Standard Commercial Grid Compliant)
• Rated Electrical Power Input: 650 Watts High-Efficiency Motor
• Tool-Accessory Interface: Industrial SDS Plus Keyway Drive System
• Single-Blow Impact Energy: 1.7 Joules
• No-Load Operational Speed: 0 to 1700 rpm (Variable Electronic Trigger Control)
• Maximum Impact Strike Cadence: 0 to 5500 bpm
• Max Concrete Drilling Diameter: 22mm (7/8 inch)
• Max Wood Drilling Diameter: 25mm (1 inch)
• Max Steel Drilling Diameter: 13mm (1/2 inch)
• Carbon Brush Servicing: External Access Chambers (Bonus Set Included)
• Enclosure Architecture: High-Impact Blow Mold Case (BMC)
• Primary Work Scope: Drop-in anchors, threaded rod installation, electrical conduit clips, and drywall tracking fastenings

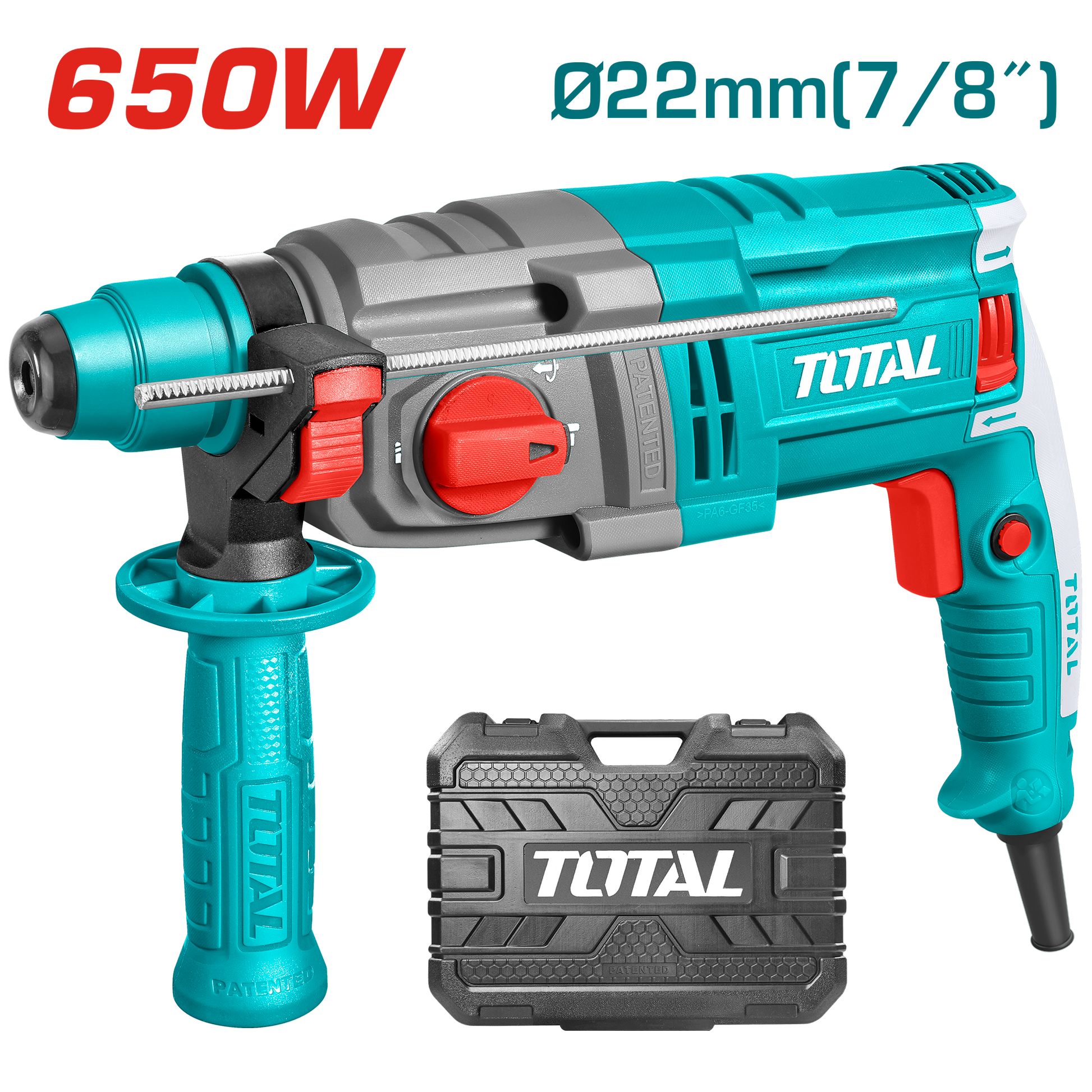

What's in the Box:

1. TOTAL 650W Compact Corded 1.7J Rotary Hammer (TH306236): 1 piece
2. Premium SDS Plus Masonry Drill Bits: 3 pieces
3. 360-Degree Adjusting Auxiliary Side Grip Handle: 1 piece
4. Depth Calibration Gauge Rod: 1 piece
5. Replacement Extended-Life Carbon Brushes: 1 set
6. High-Impact Blow Mold Case (BMC)
