Industrial Corded Rotary Hammer 1500W - Ø32mm - SDS Plus

Description

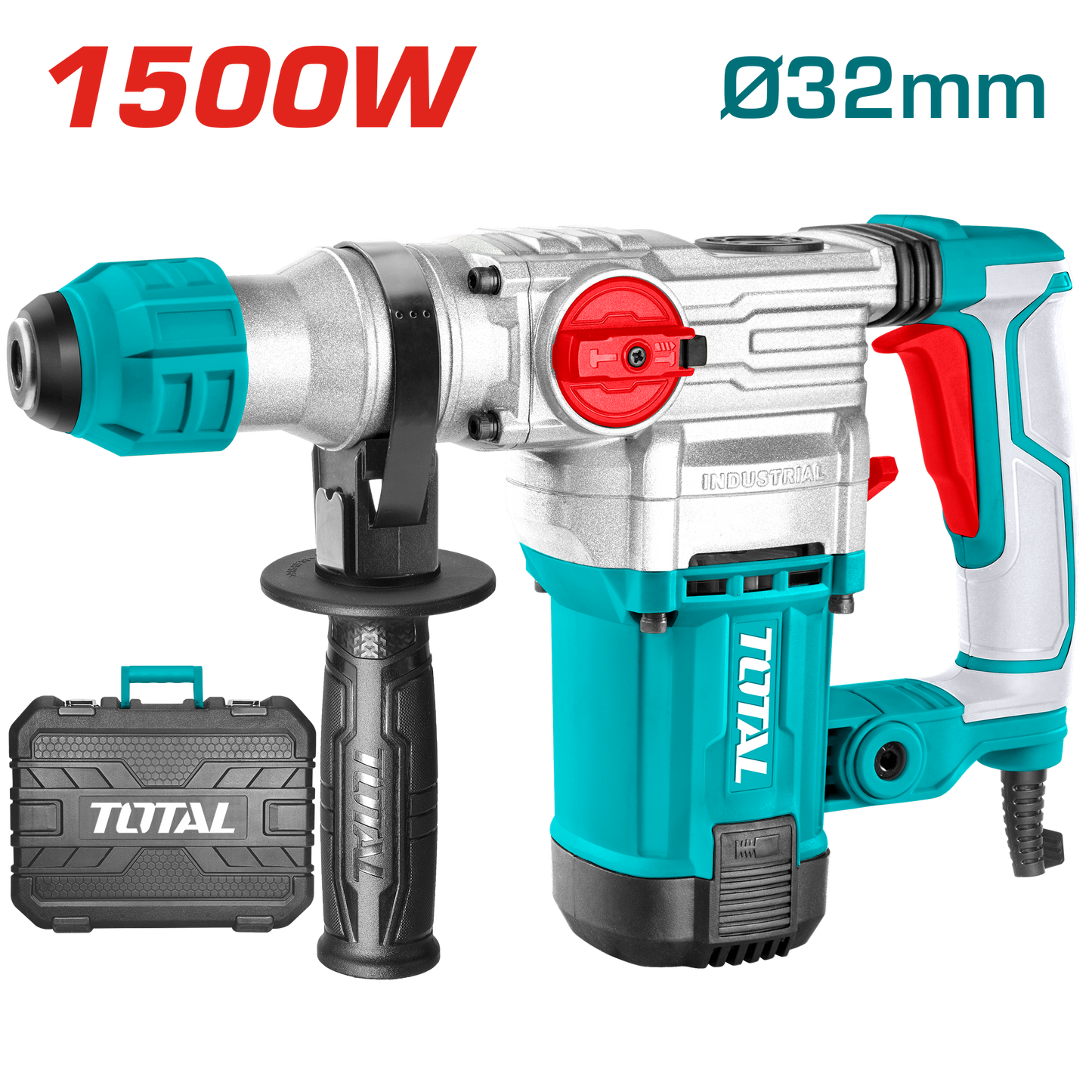

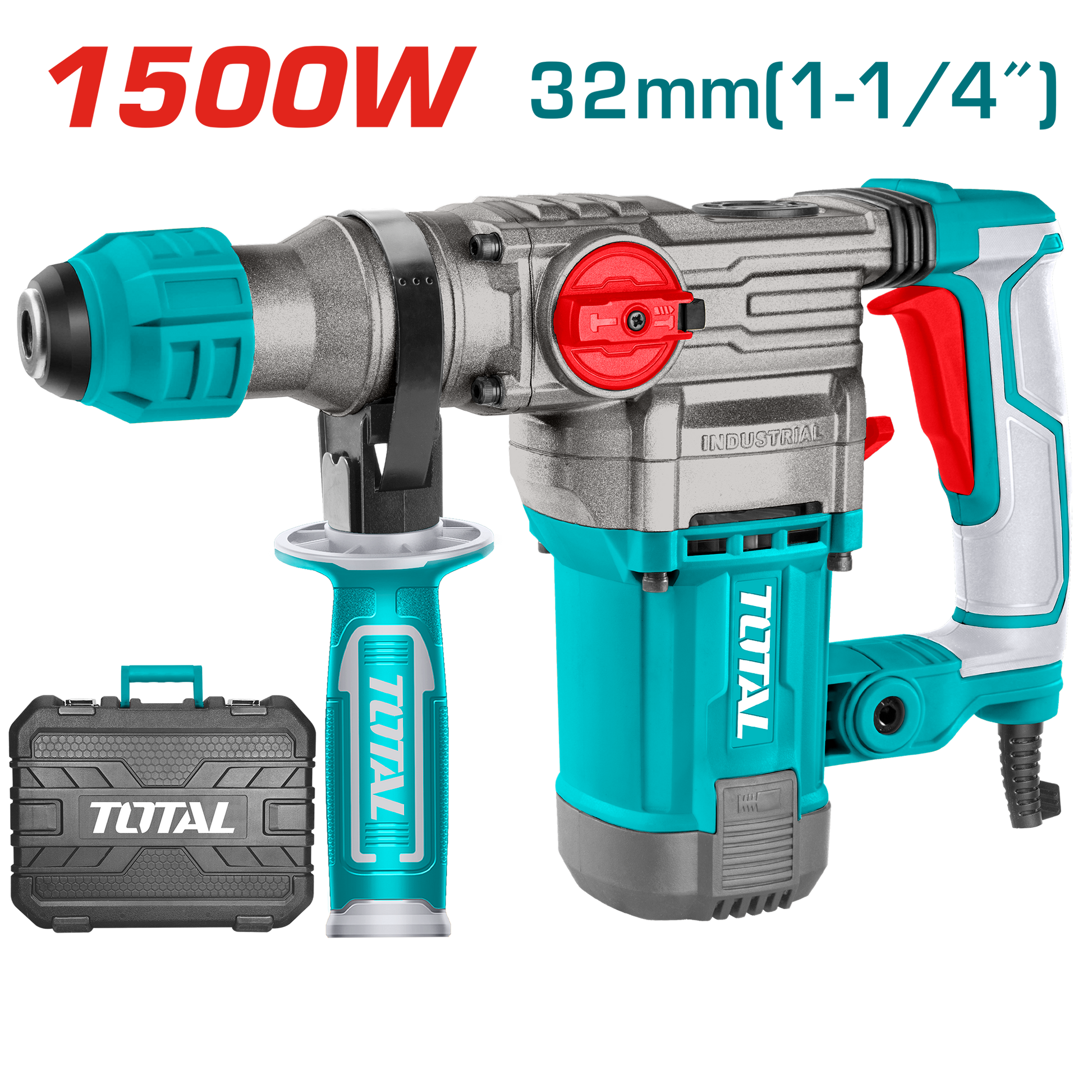

TOTAL Rotary hammer (TH1153256)

TOTAL TH1153256 is an industrial-tier, 1500-Watt corded SDS-plus rotary hammer engineered for high-volume structural anchor boring, deep through-hole masonry pipe installation, structural steel mounting, and heavy surface demolition. Driven by a high-torque, vertically mounted 1500W motor, this heavy-duty machine unloads a punishing 5.5 Joules of single-blow impact energy. Operating at a fast 4500 BPM impact rate and a calibrated 950 RPM rotational speed, this powerhouse is equipped with an integrated anti-vibration damper system to handle aggressive workloads. This complete industrial kit comes field-ready with three masonry drill bits, two cold demolition chisels, and a rugged Blow Mold Case (BMC) for secure transport.

Industrial-Grade 1500W Power & 5.5-Joule Heavy Pneumatic Impact

• High-Torque 1500-Watt Motor Core: Engineered with heavy-gauge copper windings and high-grade laminations to draw deep, reliable current from standard power outlets. The vertical L-shape layout ensures superior weight balance, efficient heat dissipation, and prolonged motor life under continuous heavy loading
• Crushing 5.5-Joule Pneumatic Strike Action: Houses an oversized pneumatic air-compression piston that drives maximum kinetic energy directly through the tool steel. This massive 5.5J hitting force effortlessly shatters dense aggregates, hard granite, and high-strength concrete without requiring excessive forward physical pressure from the operator
• Massive Structural Boring Capacity: Calibrated to handle large-scale commercial installation diameters across multiple tough substrates:
• Concrete / Masonry: Up to 32mm diameter (ideal for heavy sleeve anchors, foundation doweling, and clear conduit pathways)
• Thick Timber / Structural Beams: Up to 40mm diameter (perfect for heavy-gauge auger boring and plumbing lines)
• Structural Steel / Metal: Up to 13mm diameter (for heavy bracket installations and structural iron attachments)

Advanced Anti-Vibration Damper & Complete Field Support Kit

• Integrated Structural Anti-Vibration System: Features a decoupled rear handle assembly utilizing internal shock-absorption counterweights. This mechanism isolates intense kinetic impact waves away from the operator's hands and joints, dramatically lowering physical fatigue and extending safe working times on the floor
• Tool-Free SDS Plus Keyway Chuck: Outfitted with a positive-locking sliding collar that accepts all international standard SDS-plus accessories, holding bits firmly in place automatically while allowing rapid, one-handed hot accessory changes on the fly
• Heavy-Duty BMC Enclosure Protection: Ships inside a high-density, blow-molded hardshell structural carrying case designed to shield the tool from rugged storage drops, heavy dust entry, and mechanical impacts in transit

Technical Specifications:

• Operating Voltage Rating: 220V–240V ~ 50/60Hz (Industrial Grid Compliant)
• Rated Electrical Power Input: 1500 Watts High-Torque Core
• Tool-Accessory Interface: Industrial SDS Plus Keyway Drive System
• Single-Blow Impact Energy: 5.5 Joules
• No-Load Operational Speed: 950 rpm Continuous Rotation
• Maximum Impact Strike Cadence: 4500 bpm
• Max Concrete Drilling Diameter: 32mm (1-1/4")
• Max Wood Drilling Diameter: 40mm (1-5/8")
• Max Steel Drilling Diameter: 13mm (1/2")
• User Comfort Technology: Integrated Anti-Vibration System Structural Damper
• Enclosure Architecture: High-Impact Blow Mold Case (BMC)
• Primary Work Scope: Deep foundation drilling, heavy masonry anchor setting, tile scraping, and brick wall breaches

What's in the Box

1. TOTAL 1500W L-Shape Corded 5.5J Rotary Hammer TH1153256: 1 piece
2. Premium SDS Plus Masonry Drill Bits: 3 pieces
3. SDS Plus Pointed Demolition Chisel: 1 piece
4. SDS Plus Flat Scaling Demolition Chisel: 1 piece
5. Heavy-Duty Adjustable Auxiliary Grip Handle: 1 piece
6. Depth Gauge Measuring Rod: 1 piece
7. Heavy-Impact Blow Mold Case (BMC): 1 piece
