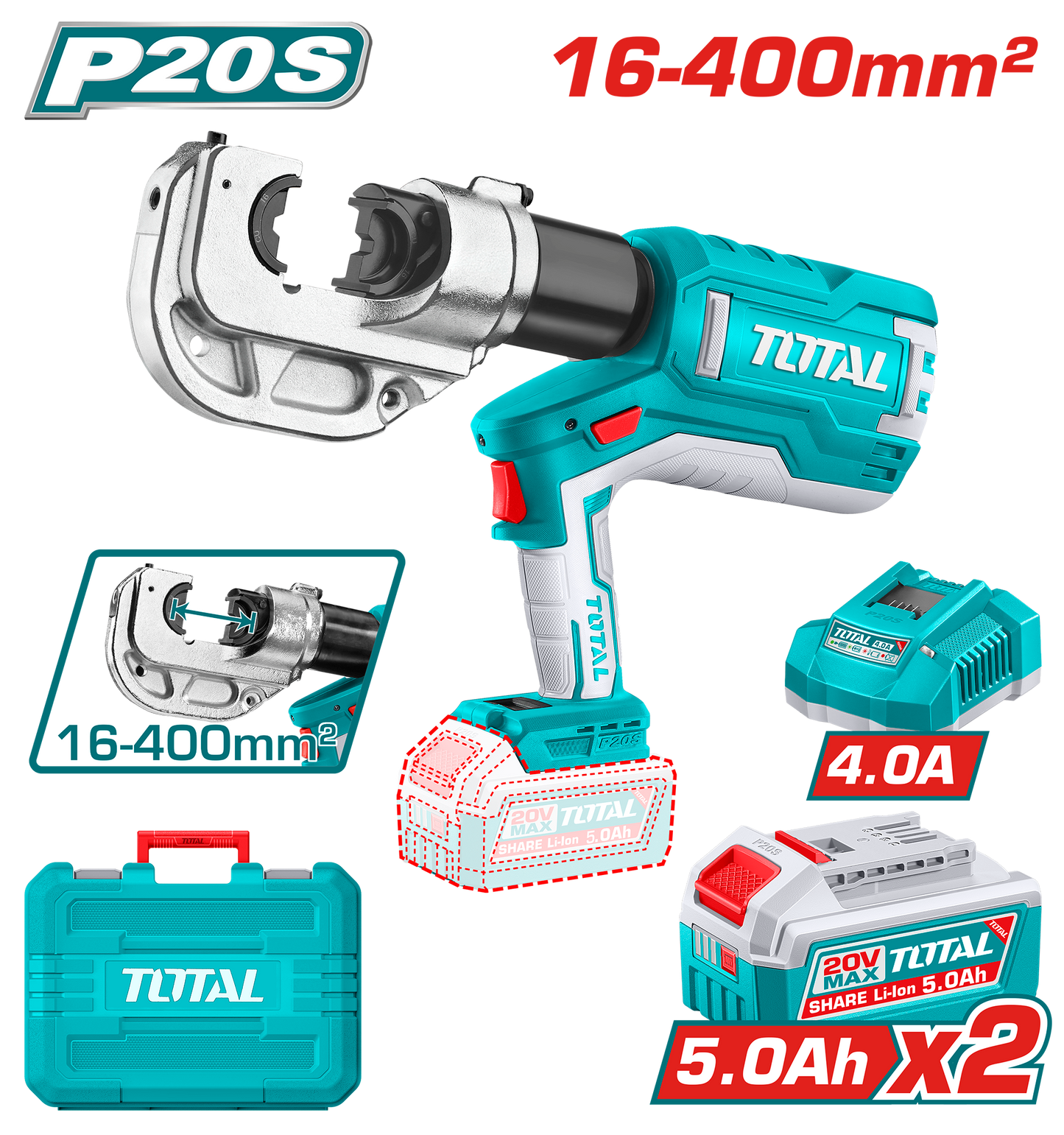

Cordless Industrial Hydraulic Crimping Tool 16-400mm2 - 120KN - P20S 5.0Ah

Description

TOTAL Cordless hydraulic crimping tool TCTLI2005

TOTAL TCTLI2005 is a precision-engineered solution for high-capacity electrical terminations. Delivering 120KN of hydraulic pressure, this tool ensures gas-tight, professional crimps on cables ranging from 16mm² to 400mm². Powered by the P20S 20V platform, it offers the portability needed for bucket truck work and substation installations without the fatigue of manual pumping.

Key Features:

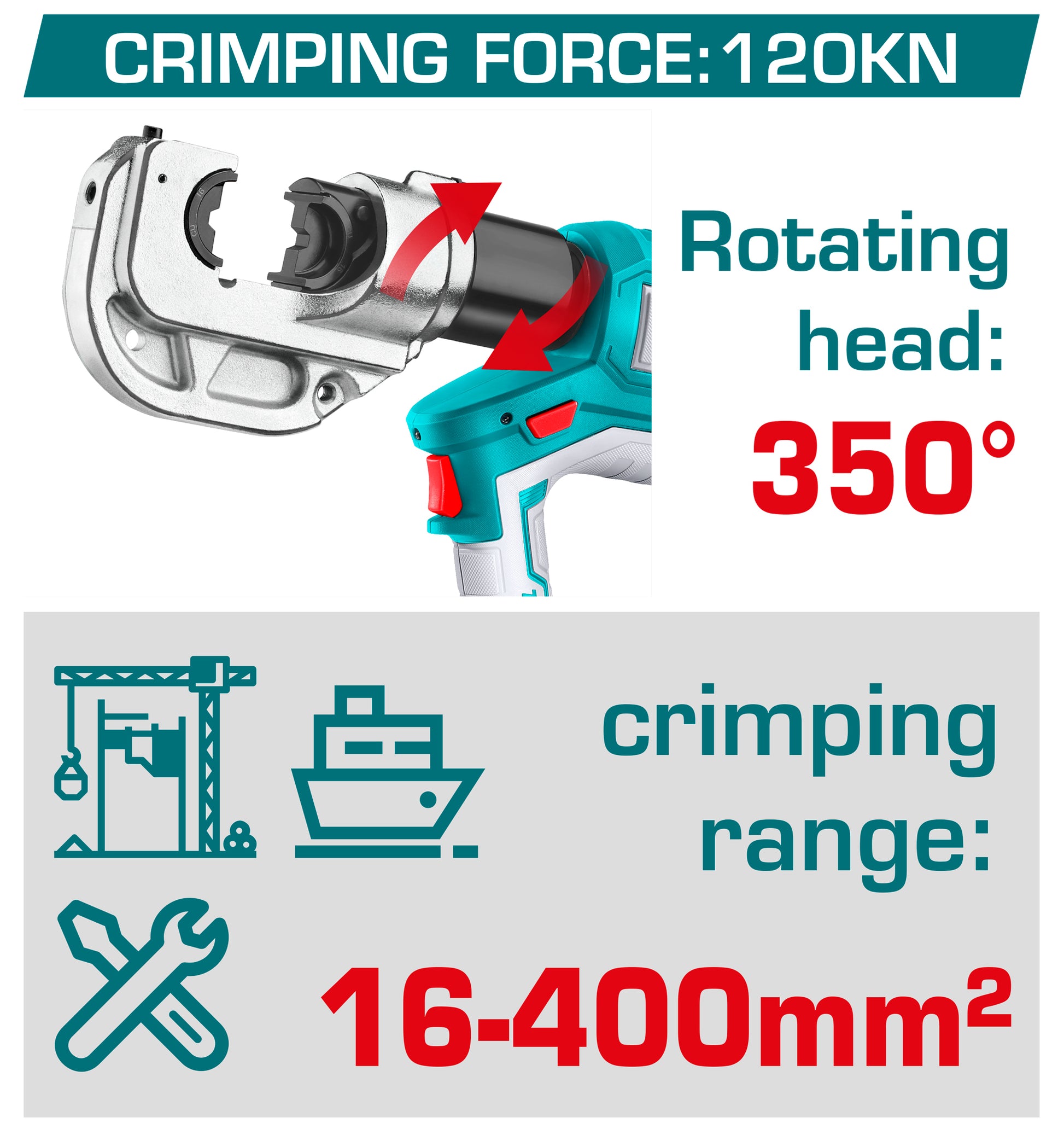

• 12-Ton Crimping Force: 120KN of output ensures perfect compression for high-voltage lugs and connectors
• Fast Operation: Intelligent hydraulic system delivers a crimp cycle of just 6 to 18 seconds, significantly increasing productivity on large-scale projects
• Smart Monitoring: The integrated LED Usage Count Display tracks total crimp cycles, allowing for precise maintenance scheduling and quality control
• Unmatched Range: Comes with a full set of 12 Crimping Dies
• High-Capacity Power: Comes with a an extra battery and fast charger to ensure the tool is always ready for high-torque demands
• Serviceable Design: Includes a full hydraulic fluid kit and replacement seal sets to keep the tool in peak condition in the field

Technical Specifications:

• Voltage: 20V
• Crimping range: 16-400mm²
• Crimping force: 120KN
• Crimp cycle: 6-18s depending on the size of cable
• Stroke: 42mm
• Charging: 220V-240V ~ 50/60Hz
• Packaging: Heavy-duty reinforced plastic carry case

Comprehensive Set Included:

1. TOTAL Lithium-ion Battery Packs 5.0Ah (TFBLI2053): 2 pieces
2. TOTAL Battery Charger 4A (TFCLI20411E): 1 piece
3. Crimping dies: 12 pieces - 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 / 300 / 400mm2
4. Sealing ring of cylinder: 1 set
5. Sealing ring of safety: 1 set
6. Hydraulic Fluid: 1 set
7. Hydraulic Fluid Bag: 1 piece
8. Heavy-duty reinforced plastic carry case
