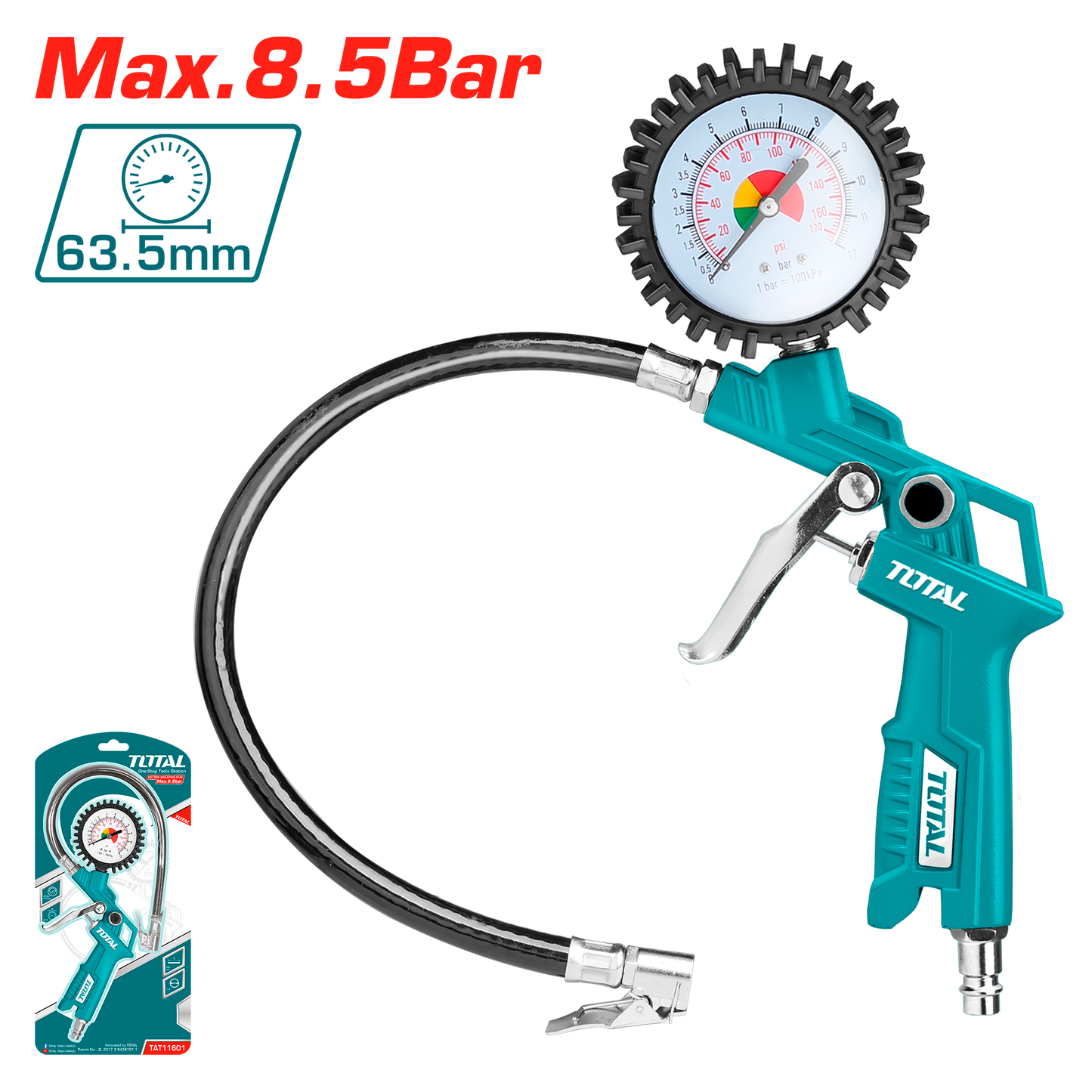

Universal Pneumatic Tire Inflating Gun 8.5BAR (120psi)

Description

TOTAL Air tire inflating gun (TAT11601)

TOTAL TAT11601 is an industrial-grade pneumatic tire inflating gun engineered for high-frequency pressure diagnostic checkups, vehicle servicing, and fleet maintenance operations. Calibrated to handle working pressures up to 8.5 BAR (120 PSI), this versatile air tool features a built-in mechanical pressure gauge and a robust metal trigger assembly, making it an essential baseline asset for automotive repair shops, tire service centers, agricultural hubs, and industrial transport yards.

Universal Global Connector Ecosystem

• 4-Piece Interchangeable Plug Package: Comes pre-packaged with four distinct quick-change air fittings:
1. Europe-Type Connector: Standard for European and international workshop layouts.
2. USA-Type (Industrial/Milton) Connector: The standard profile across North American air systems
3. Nitto-Type Connector: High-flow profile heavily utilized across Asian industrial facilities
4. Italy-Type Connector: Specialized European profile for targeted pneumatic tool networks
• Instant Adaptability: Eliminates setup downtime by allowing technicians to unbox the tool and immediately adapt it to match any pre-existing facility air line configuration without tracking down aftermarket brass fittings

Precision Pressure Control & Mechanical Architecture

• 8.5 BAR / 120 PSI Capacity Profile: Optimally pressure-scaled to handle tires ranging from low-pressure turf tires and consumer passenger vehicles up to high-pressure commercial delivery vans and light trucks
• Integrated Clear-View Dial Gauge: Outfitted with an analog dial face displaying dual pressure readings in both BAR and PSI, protected by a resilient rubberized shroud to safeguard calibration against rough workshop drops
• Heavy-Duty Locking Clip-On Chuck: Features a spring-loaded, hands-free thumb latch that clamps firmly onto standard tire valve stems, ensuring a tight seal that will not leak or pop off under full compressor pressure

Technical Specifications:

• Maximum Pressure Capacity: 8.5 BAR / 120 PSI
• Included Pneumatic Plugs: USA, Europe, Nitto, and Italy types
• Gauge Type: Integrated Analog Dial with Shock-Absorbing Rubber Bumper
• Control Mechanism: High-sensitivity cast alloy inflation trigger with a built-in thumb deflation relief valve
• Hose Configuration: Flexible, high-pressure reinforced rubber air lead
• Primary Applications: Checking tire pressure, inflating passenger vehicle/light truck tires, inflating agricultural equipment tires, and precision air-pressure bleeding
